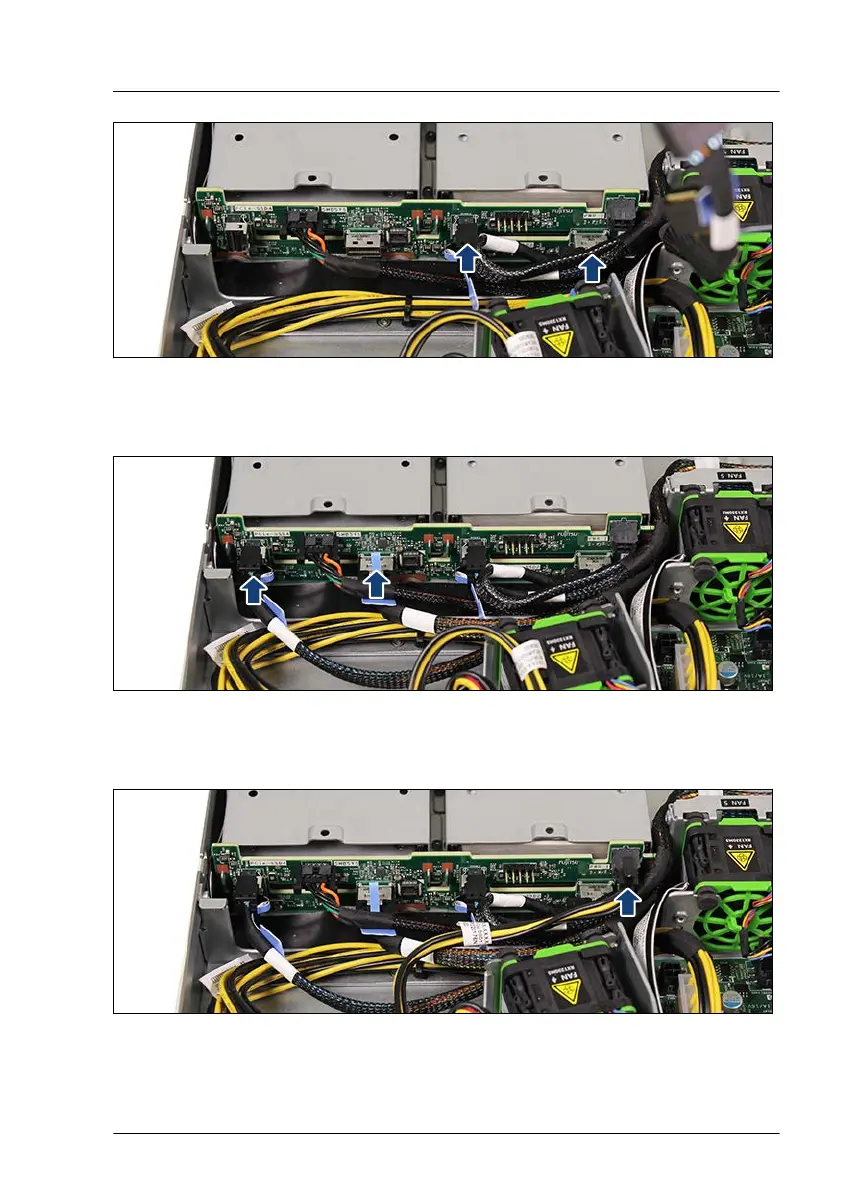

Figure 91: Connecting the NVMe cables (A)
▶
Connect the first NVMe cable to the HDD backplane.
Figure 92: Connecting the NVMe cables (B)
▶
Connect the second NVMe cable to the HDD backplane.
Figure 93: Connecting the power cable (NVMe variant)
▶
Connect the power cable to the HDD backplane.
Hard disk drive (HDD) / solid state disk (SSD)
RX1330 M5 Upgrade and Maintenance Manual 157
