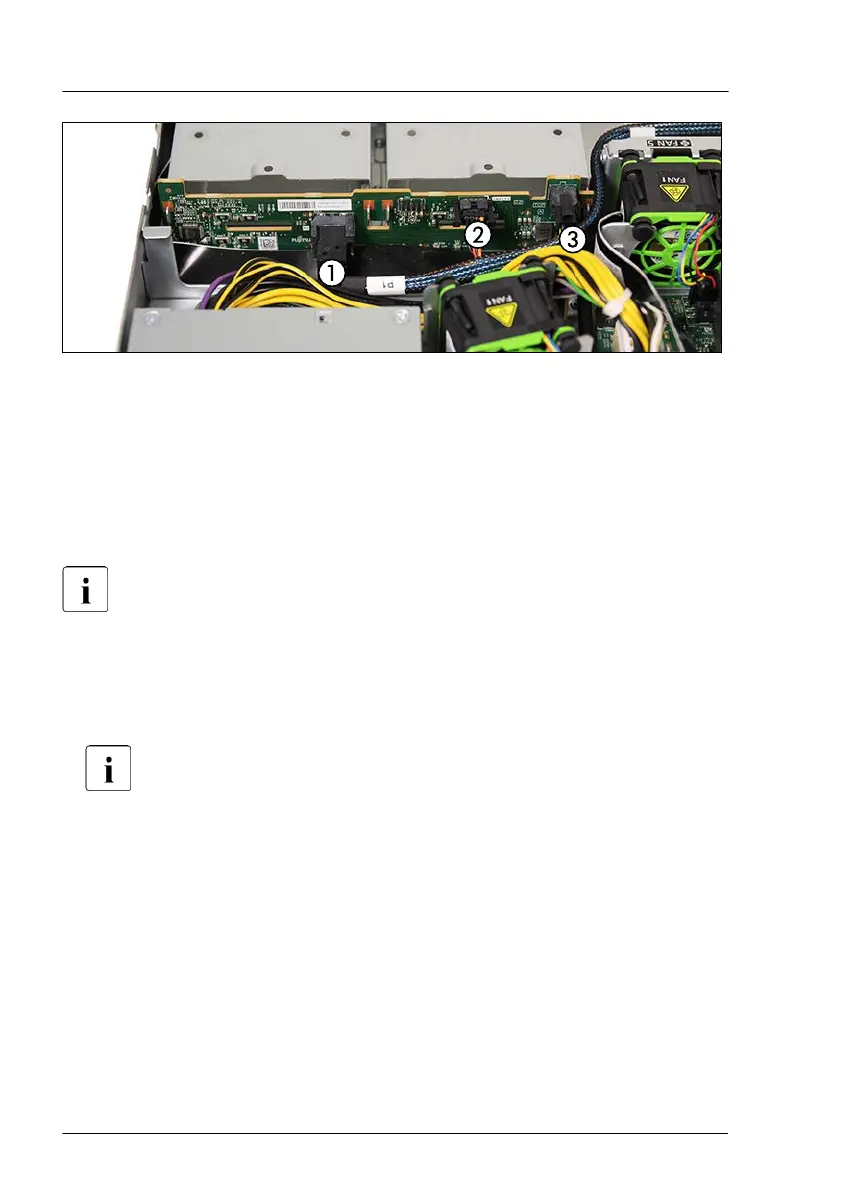

Figure 94: Connecting the cables (SAS/SATA variant)
▶
Connect the following cables to the HDD backplane:
1 SAS cable
2 OOB cable
3 Power cable
For the cable plan, see "Appendix B" on page 363
.
Concluding steps
▶
Insert all HDD/SSD modules, see "Installing a 2.5-inch HDD/SSD module"
on page 140
.
Make sure that you reinstall the HDD/SSD module in the bay it was
located before the HDD backplane replacement.
▶
Insert all dummy modules, see "Installing a 2.5-inch dummy module" on
page 143.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
Hard disk drive (HDD) / solid state disk (SSD)
158 Upgrade and Maintenance Manual RX1330 M5

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
