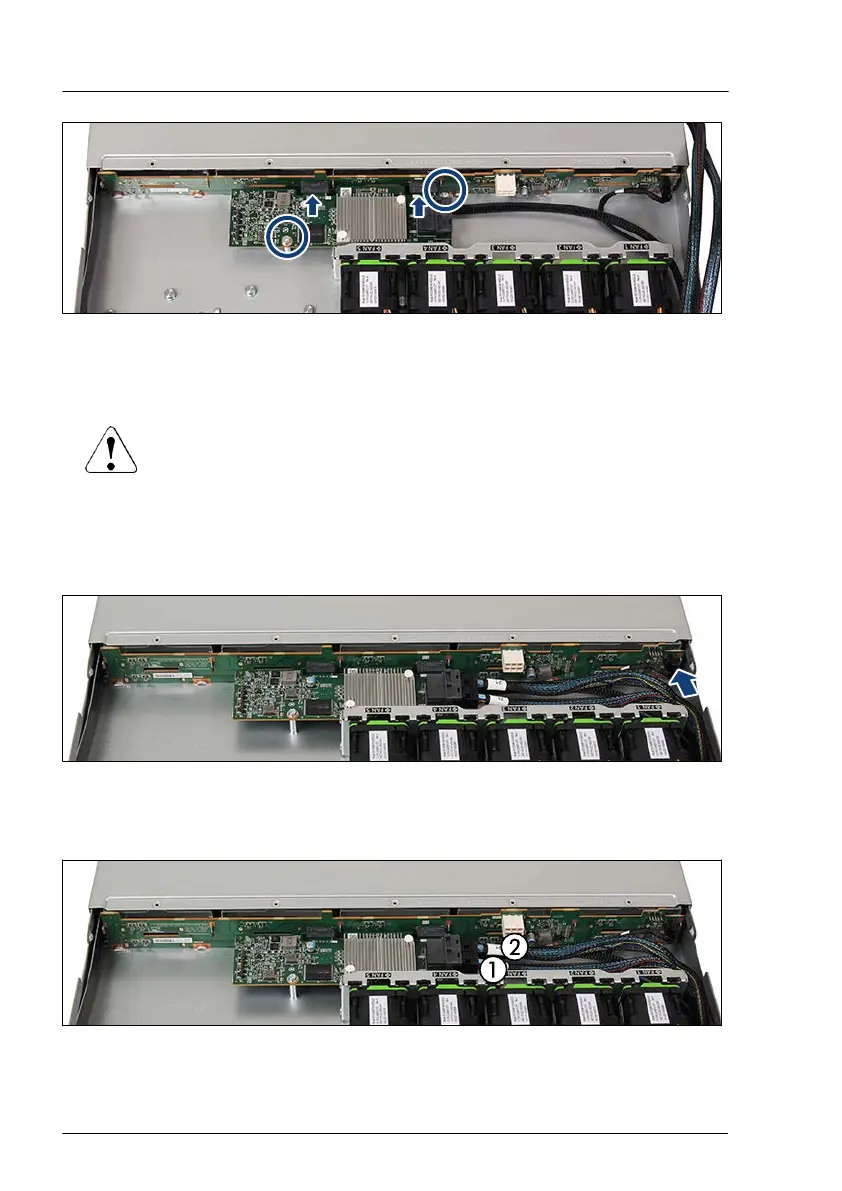

Figure 101: Installing the SAS expander board
▶
Insert the SAS expander board into the two connectors of the HDD
backplane.
CAUTION
▶
Lift up the SAS expander board while inserting it in order to
prevent the components to be damaged by the stand-offs of the
chassis.
▶
Fasten the SAS expander board with two screws (see circles).
Figure 102: Connecting the OOB cable
▶
Connect the OBB cable to the HDD backplane.
Figure 103: Connecting the cables to the SAS expander board
Hard disk drive (HDD) / solid state disk (SSD)
162 Upgrade and Maintenance Manual RX1330 M5

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
