Carefully press the expansion card into the riser card slot, until it clicks into
place. Make sure that the lug on the slot cover clicks into place in the
corresponding bracket (see circle).
The following figures show examples for installing expansion cards.
Example PRAID EP540xxi

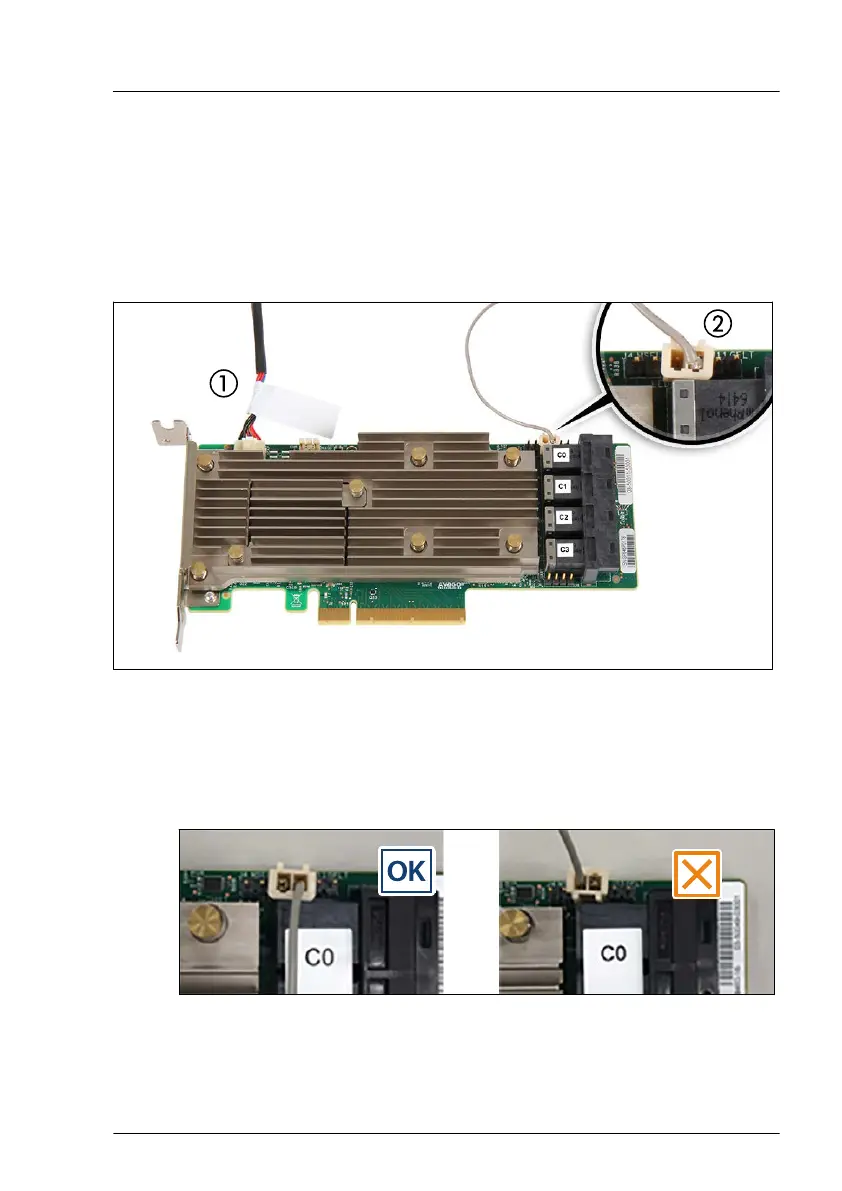

Figure 142: Connecting cables - PRAID EP5xxi
▶
Connect the following cables:
1 If applicable, FBU cable
2 If applicable, HDD LED cable
Expansion cards and backup units
RX1330 M5 Upgrade and Maintenance Manual 197
