Fujitsu PRIMERGY RX1330 M5 User Manual

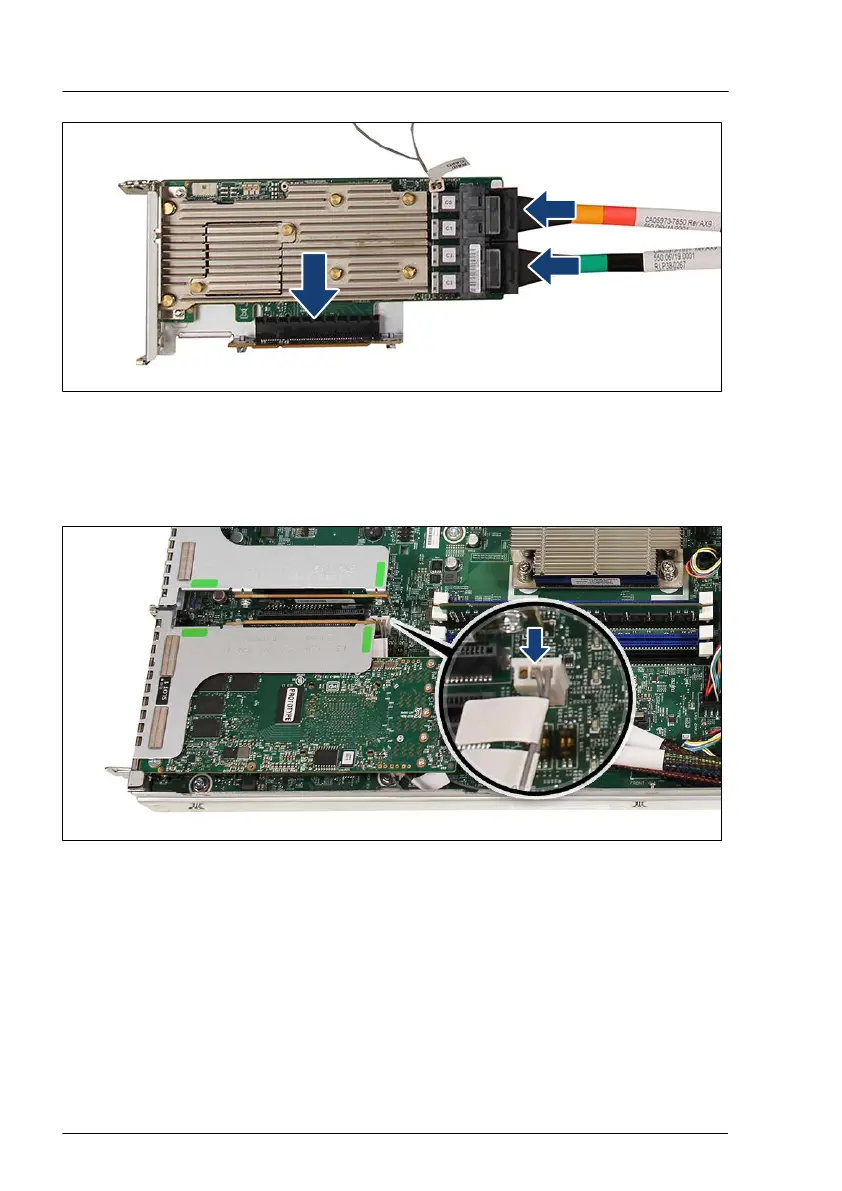

Figure 143: Example PRAID EP5xxi in riser module 1
▶
Install the PRAID EP5xxi in riser module 1.
▶
Connect the corresponding SAS cables to the PRAID EP5xxi.
Figure 144: Connecting the HDD LED cable to the system board
▶
Connect the HDD LED cable to connector "HDD LED" on the system board
(see close-up). There is no problem if the connector direction is different
from the figure.
▶
Install the riser module 1.
▶
If applicable, connect the FBU cable to the FBU.
Expansion cards and backup units
198 Upgrade and Maintenance Manual RX1330 M5
