Fujitsu PRIMERGY RX1330 M5 User Manual

A

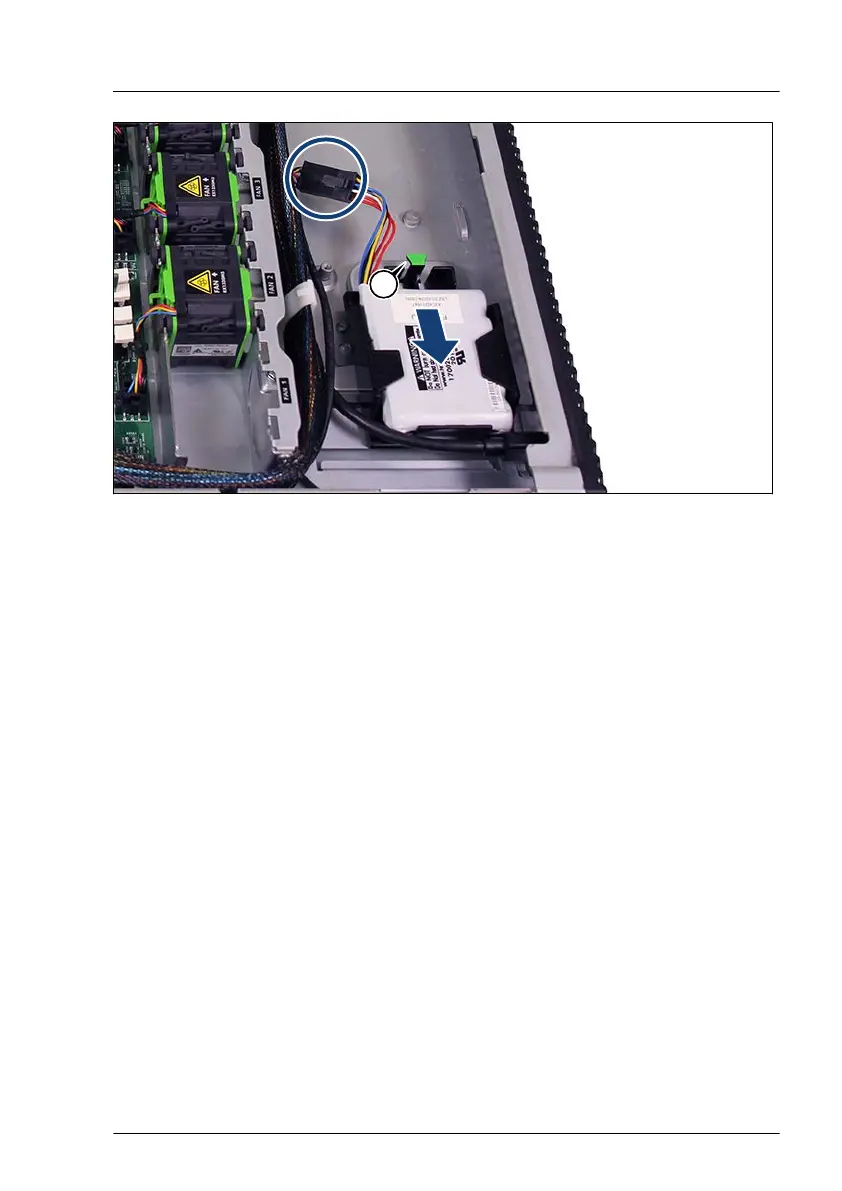

Figure 159: Installing the FBU with the holder (RX1330 M5S)
▶
Insert the holder into the chassis so that the three bolts rest in the wide ends
of the keyhole slots on the holder.
▶
Slide the holder in direction of the arrow
.
The bolts will lock in the narrow ends of the keyhole slots on the holder.
▶
Ensure that the locking handle (A) on the holder properly snaps in place.
▶
Connect the FBU adapter cable to the FBU cable (see circle).
▶
Install the RAID controller, see "Installing the expansion card" on page 196.
Expansion cards and backup units
RX1330 M5 Upgrade and Maintenance Manual 213

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
