Fujitsu PRIMERGY RX1330 M5 User Manual

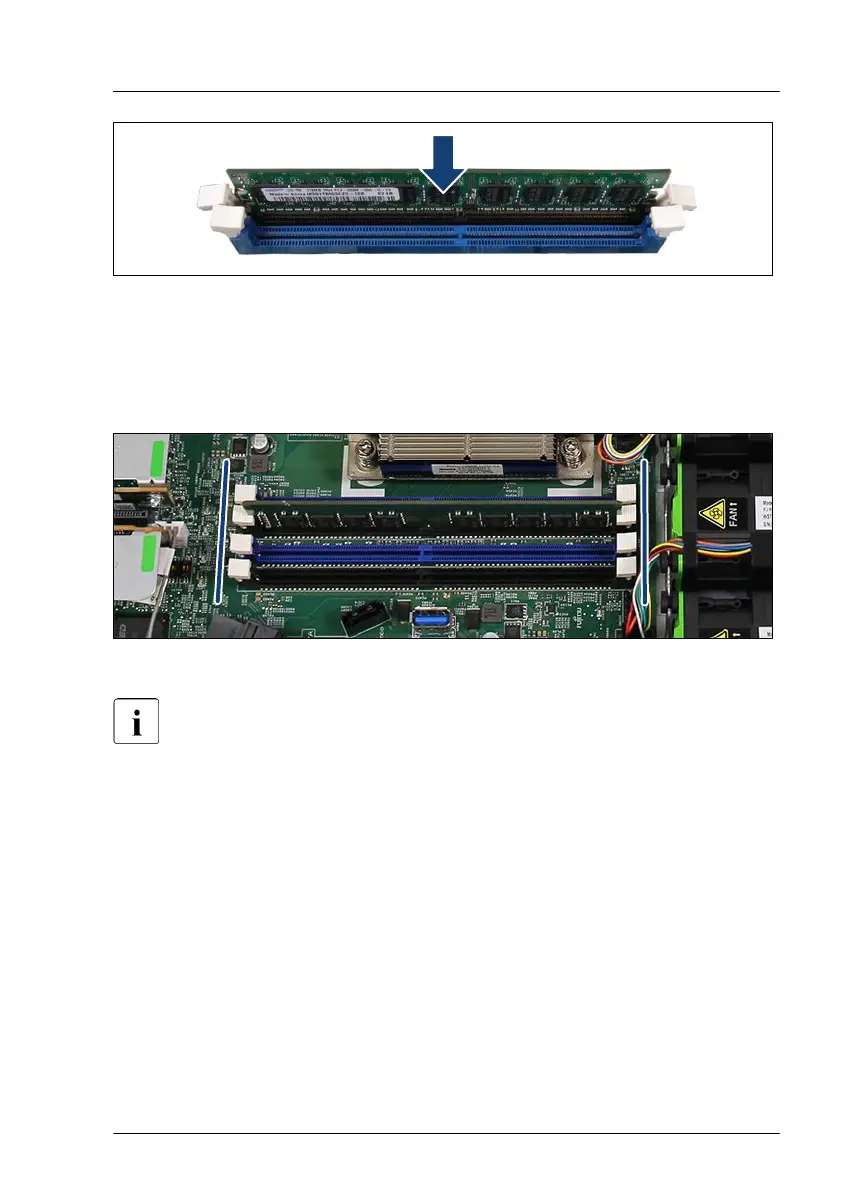

Figure 169: Installing a memory module
▶
Align the notch on the bottom of the module with the crossbar in the slot.
▶
Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
Figure 170: Correct position of securing clips
To improve the contact of the memory module perform the following
steps:
▶
Eject the memory module again by pressing out the securing clips at each
end of the memory slot.
▶
Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
▶
Check if all securing clips are in the correct position, see Figure 170.
Concluding steps
▶
"Installing the air duct" on page 66.
▶
"Reassembling" on page
53.
▶
"Connecting the power cord" on page 57.
Main memory
RX1330 M5 Upgrade and Maintenance Manual 225

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
