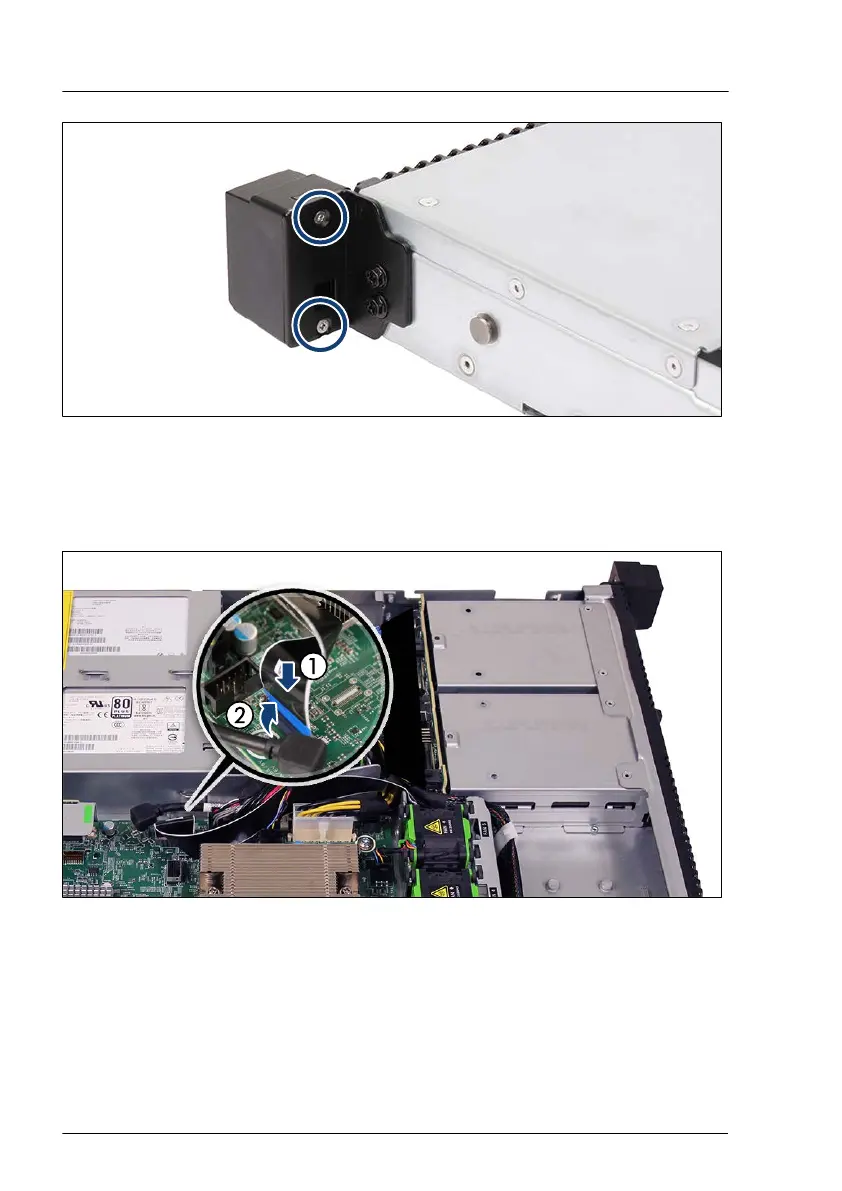

Figure 203: Installing the COP (B)

▶

Fasten the COP with two screws (see circles).

▶

Route the front panel cable in the chassis as before.

Figure 204: Connecting the front panel cable (RX1330 M5S)

Front panel

262 Upgrade and Maintenance Manual RX1330 M5
