108 Upgrade and Maintenance Manual
TX140 S2
Power supply
6.3.1.3 Installing a hot-plug power supply unit

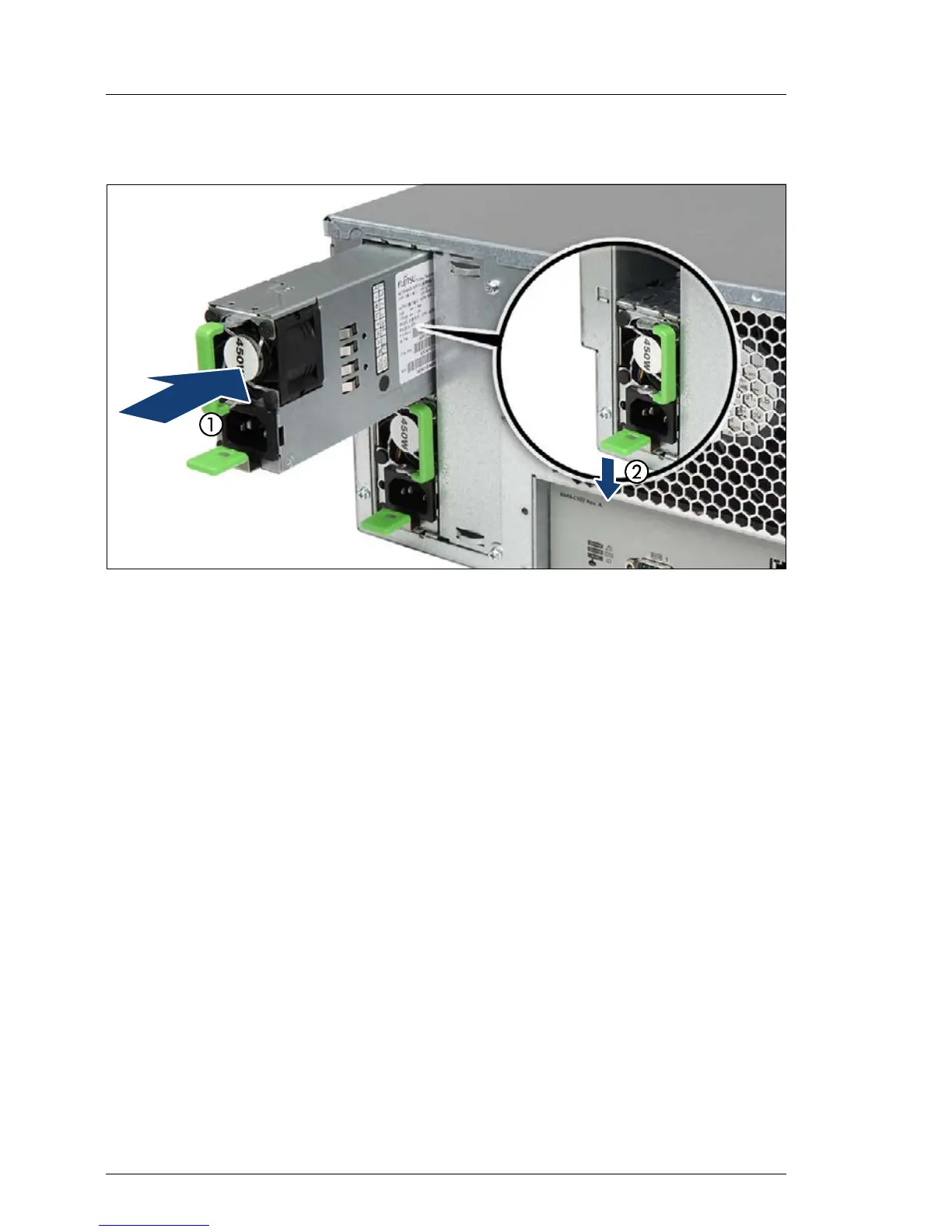

Figure 35: Installing a power supply unit
Ê Push the power supply unit into its slot (1) as far as it will go until the locking
latch snaps in place (2).
V CAUTION!
Ensure that the power supply unit properly engages in its slot and is
locked in position in order to prevent it from sliding out of the chassis
during transportation.
Ê If applicable, fold down the handle on the power supply unit.
6.3.1.4 Concluding steps
Ê For the added power supply unit: "Connecting the server to the mains" on
page 67
