256 Upgrade and Maintenance Manual
TX140 S2
System board and components

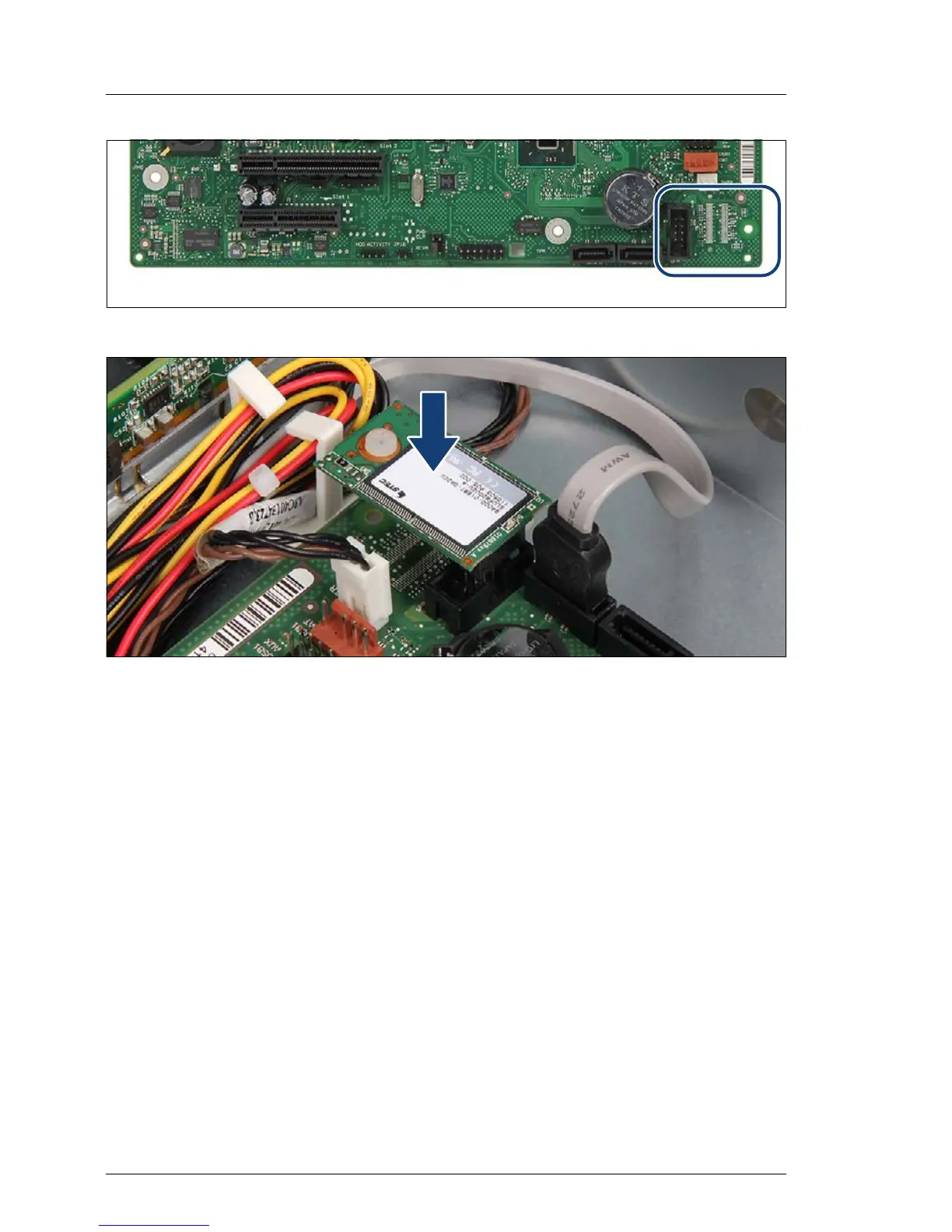

Figure 161: UFM mounting location
Figure 162: Installing the UFM
Ê Connect the UFM to the system board, snapping in the UFM spacer.
14.3.1.3 Concluding steps
Ê "Reassembling" on page 58
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 68
Ê "Enabling SVOM boot watchdog functionality" on page 85
Ê "Enabling BitLocker functionality" on page 90
