136 Upgrade and Maintenance Manual
TX140 S2
Hard disk drives / solid state drives

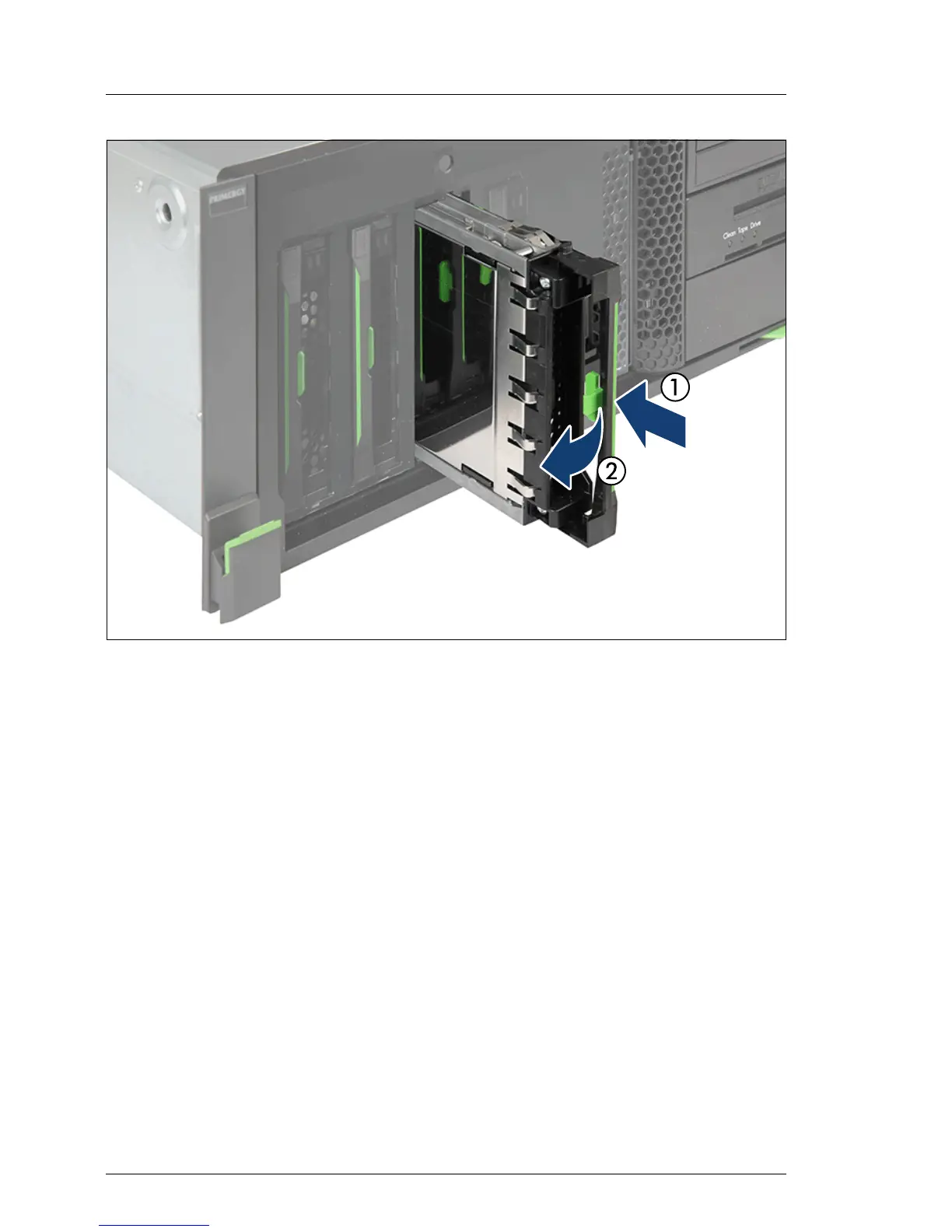

Figure 55: Inserting the 3.5-inch HDD module
Ê Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
Ê Fold down the lever to lock the HDD module in place (2).
7.3.3.4 Concluding steps
Ê If applicable, "Installing the HDD bay cover" on page 64
Ê "Performing a RAID array rebuild" on page 91
