Fujitsu PRIMERGY TX140 S2 - Onboard Settings

TX140 S2 Upgrade and Maintenance Manual 329
Appendix
17.3 Onboard settings

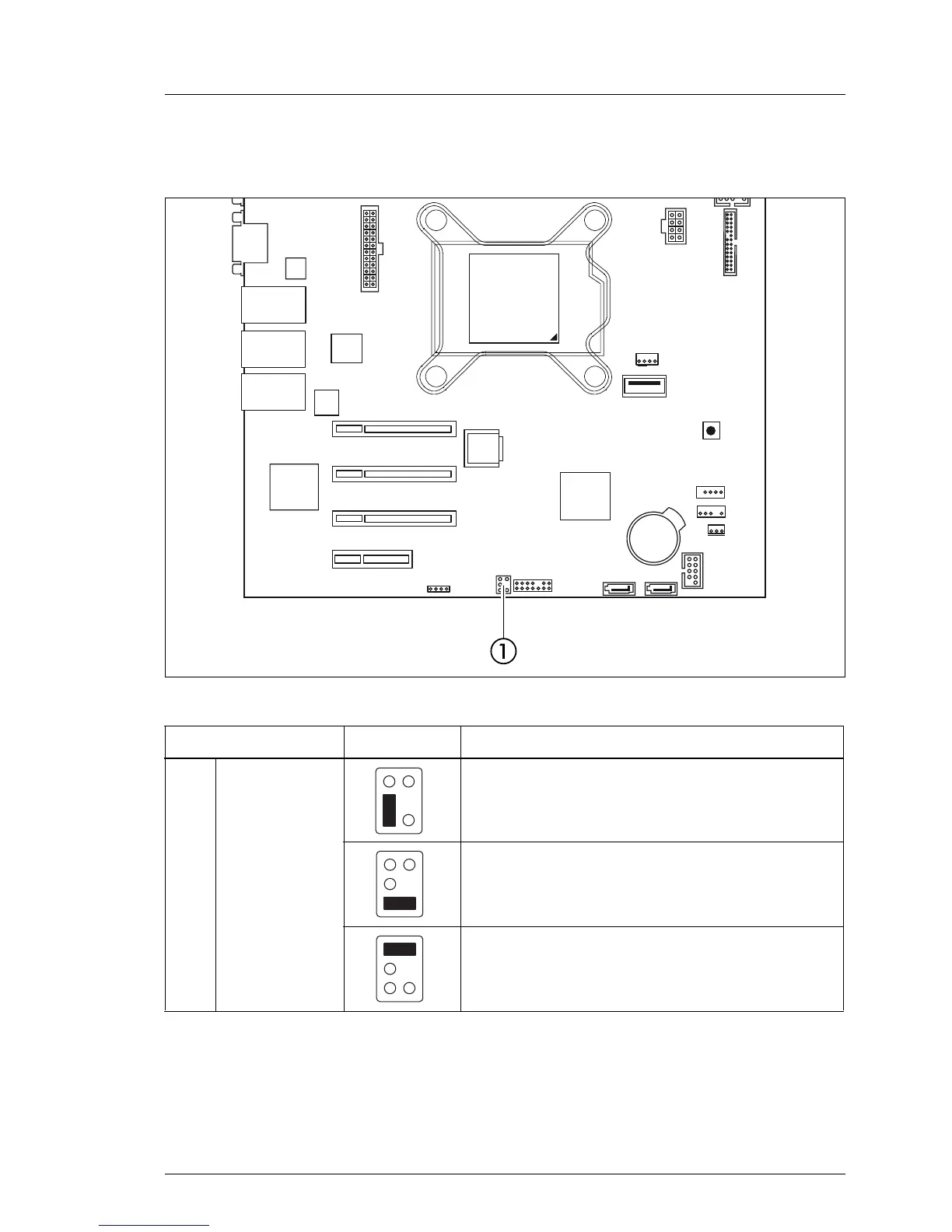

Figure 231: Onboard settings on system board D3239
Setting Status Description
1
Jumper
settings
Default: Password Clear and Recovery
BIOS disabled
RCVR: Recovery BIOS enabled
PWD-CLR: Password Clear enabled
External connectors
Slot 3 PCIe x8
MLC
SATA1-4
Battery
Indicate
CSS
CPU
SATA6
SATA
POWER
PWR1
HDD ACTIVITY
Intrusion
TPM
Slot 2 PCIe x4
Management
LAN/
USB 9/10
Shared LAN/
USB 7/8
Standard LAN/
USB 5/6
USB Front
Slot 4 PCIe x8
Slot 1 PCIe x1
Intel
C224
USB1
DAT
USB1AUX
iRMC S4
FAN1
SYS
UFM
VGA
SATA5
Intel
i210
Intel
i217
Jumper
Service
LAN
Micro
SD
