Fujitsu PRIMERGY TX140 S2 - Removing the FBU Holder from the Chassis; Concluding Steps

200 Upgrade and Maintenance Manual TX140 S2
Expansion cards and backup units
9.5.4.3 Removing the FBU holder from the chassis

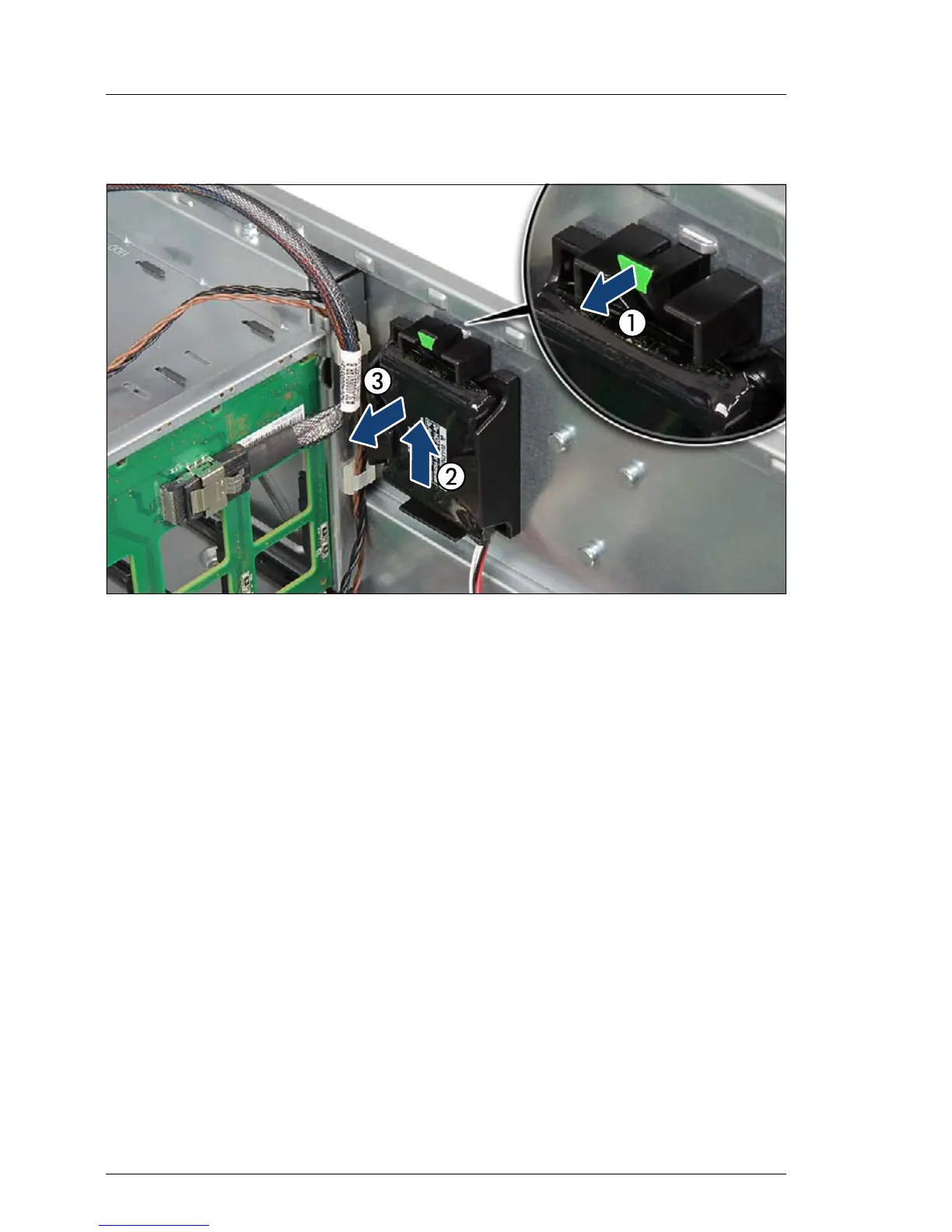

Figure 118: Removing the FBU holder from the chassis
Ê Lift up the green locking handle on the FBU holder (1) while sliding the BBU
holder upward as far as it will go (2).
I After that, the fixation bolts on the chassis floor will rest in the wide
ends of the keyhole slots on the holder.
Ê Lift the FBU holder out of the chassis (3).
9.5.4.4 Concluding steps
Ê "Installing the fan module" on page 152
Ê "Reassembling" on page 58
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 68
