Ê Verify the settings on the new system board (see section "Onboard settings"
on page 329).
14.5.4 Swapping the processor

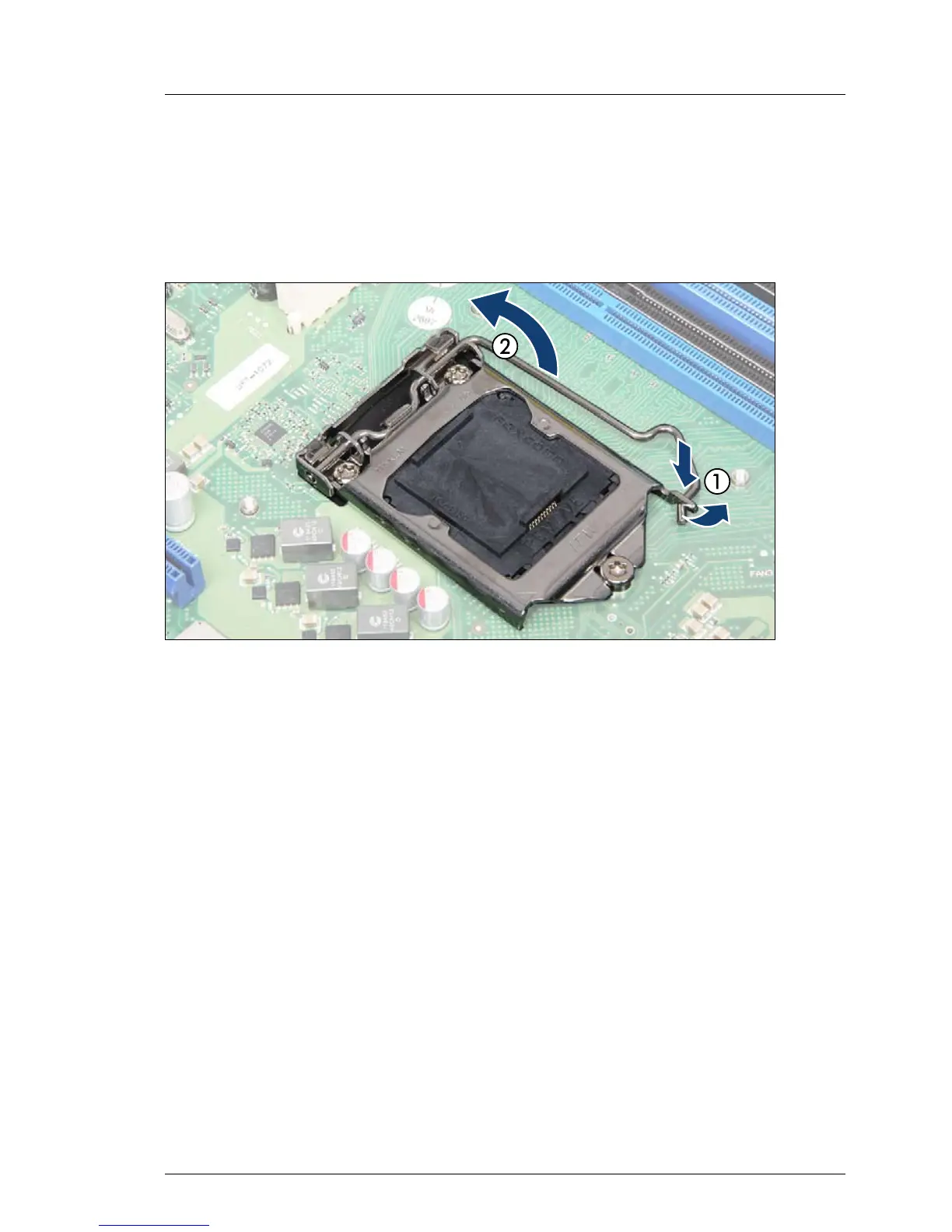

Figure 183: Unlatching the socket lever (new system board)
Ê Unlatch the socket lever on the new system board by pushing it down and
away from the socket (1).
Ê Fold back the socket lever to disengage the load plate (2).
Ê Rotate the socket lever to lift the load plate.
Ê Make sure that the load plate is in the fully open position.
