TX140 S2
Upgrade and Maintenance Manual 241
Accessible drives
12.3.3 Installing accessible drive dummy covers
Installing accessible drive filler covers

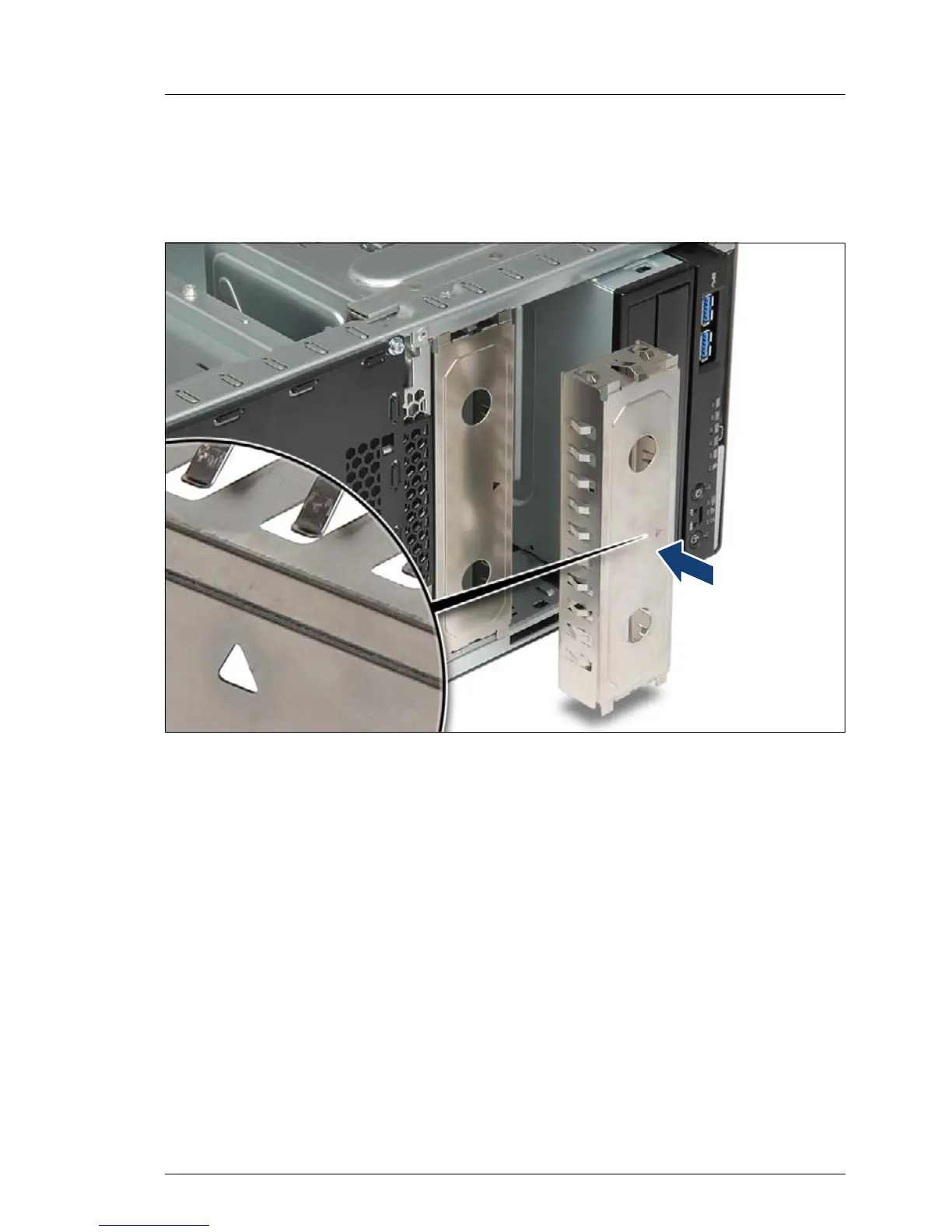

Figure 151: Installing an accessible drive filler cover
Ê Hold the accessible drive filler cover by its two handle recesses and insert it
into the empty installation bays with the punched-out arrow symbol facing up
(see close-up).
V CAUTION!
Always replace filler covers into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
