Fujitsu PRIMERGY TX140 S2 - Installing the TPM

TX140 S2 Upgrade and Maintenance Manual 263
System board and components
14.4.1.2 Installing the TPM

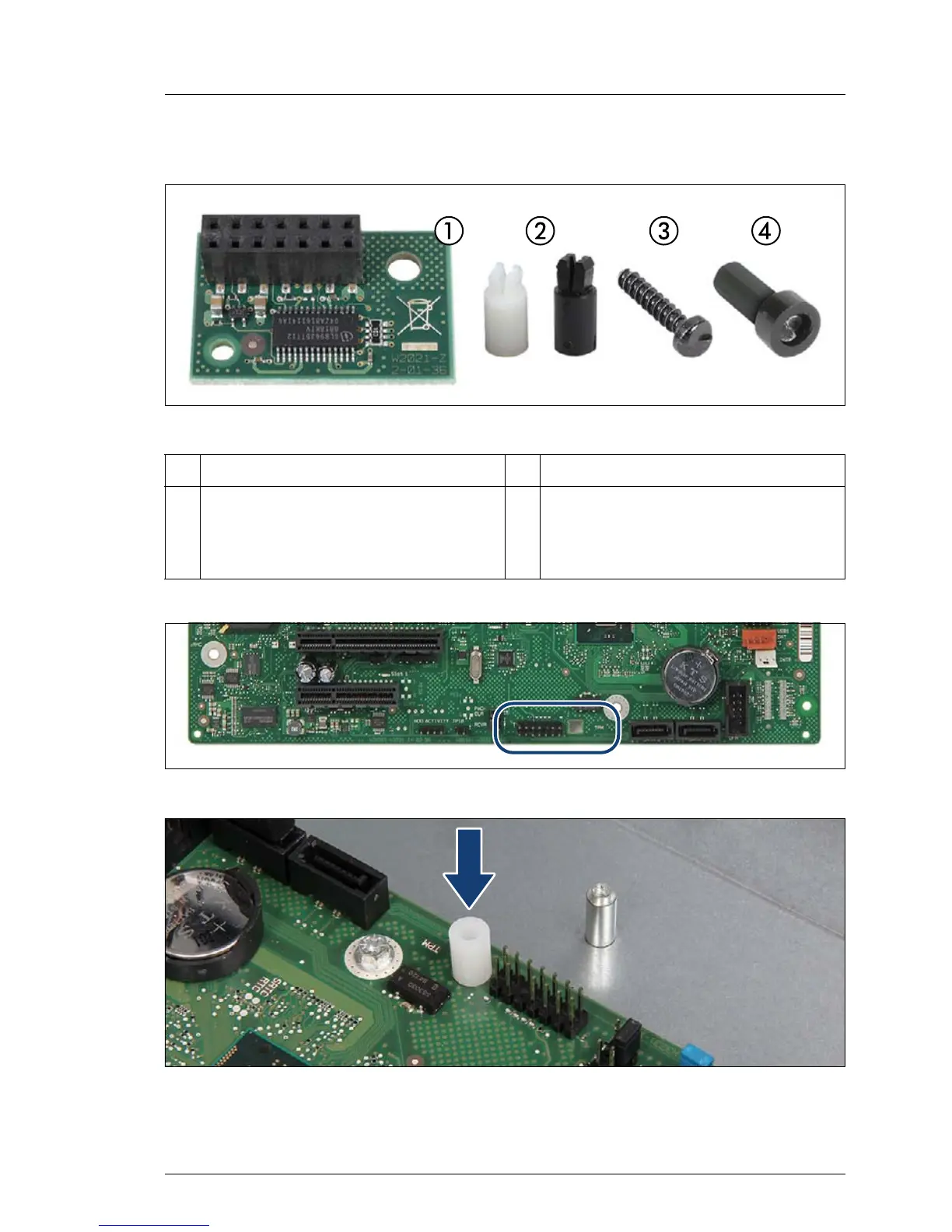

Figure 168: TPM kit
Figure 169: TPM mounting location
Figure 170: Installing the TPM spacer
Ê Snap the TPM spacer into the cut-out in the system board.
1 TPM (Trusted Platform Module) 3 Special screw for TPM
2 TPM spacer
I The black TPM spacer is
not used in this server.
4 TPM bit insert for TPM special
screw
