134 Upgrade and Maintenance Manual
TX140 S2
Hard disk drives / solid state drives
7.3.3 Installing 3.5-inch HDD modules
7.3.3.1 Preliminary steps
Ê If applicable, "Removing the HDD bay cover" on page 55
Ê Locate the correct drive bay as described in section "3.5-inch HDD
configurations" on page 133.
7.3.3.2 Removing a 3.5-inch HDD dummy module

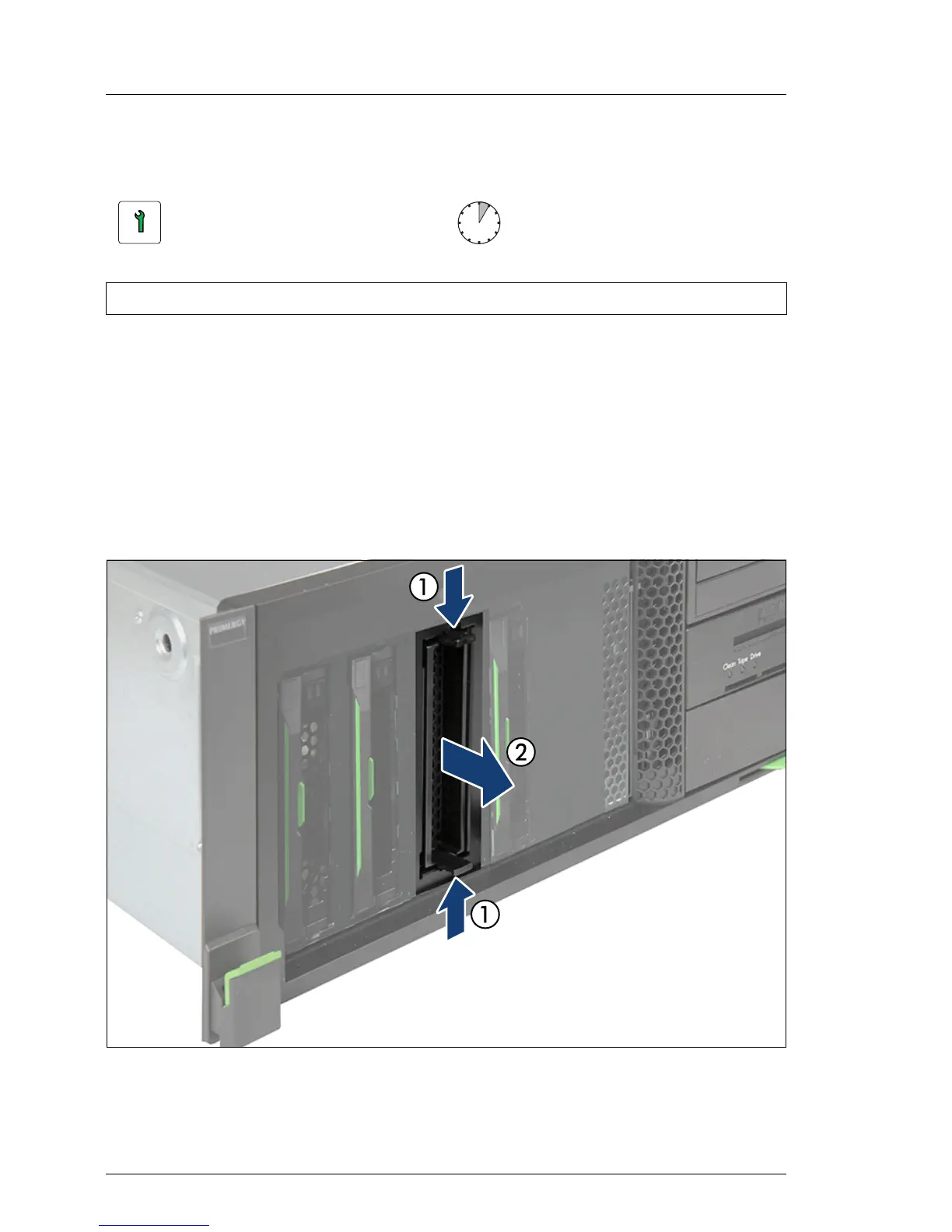

Figure 53: Removing a 3.5-inch dummy module
Ê Press in on the locking tabs on both sides of the dummy module to
disengage the locking mechanism (1).
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less
