110 Upgrade and Maintenance Manual
TX140 S2
Power supply
6.3.2.2 Removing a hot-plug power supply unit

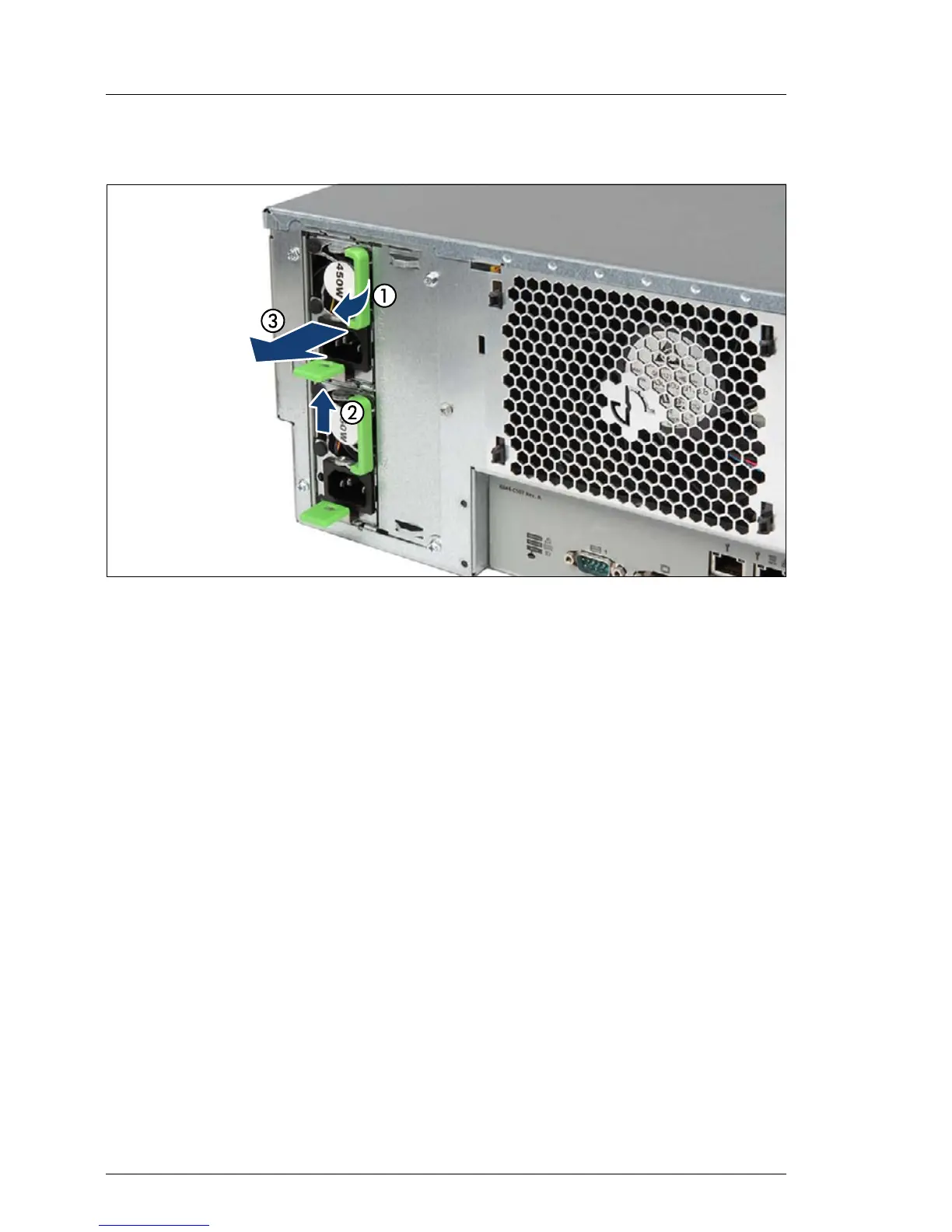

Figure 36: Removing a power supply unit
Ê Fold up the handle on the power supply unit (1).
Ê Press in on the green release latch (2).
Ê While keeping the green release latch pressed, pull the power supply unit
out of its bay (3).
V CAUTION!
Never leave the bay for the power supply unit empty for more than two
minutes during operation. Otherwise, excessive temperatures could
damage system components.
