192 Upgrade and Maintenance Manual
TX140 S2
Expansion cards and backup units
9.5.2.3 Installing the FBU in the holder

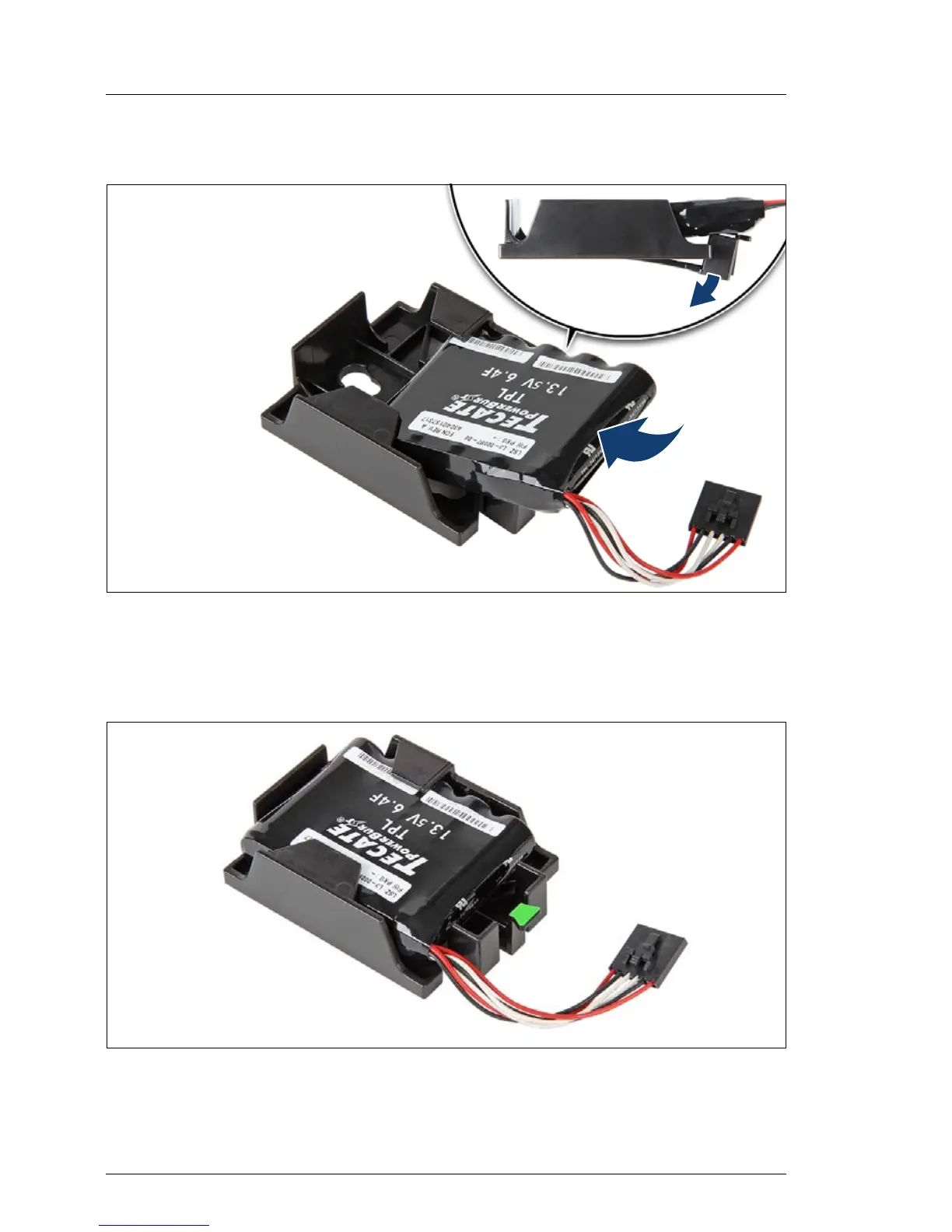

Figure 109: Installing the FBU in the holder (A)
Ê At a slight angle, fit the FBU under the right retaining bracket on the holder.
Ê Push down the FBU until it locks in place.
Figure 110: Installing the FBU in the holder (B)
Ê Ensure that the FBU is properly seated in the holder.
