Expansion cards and backup units
V CAUTION!
Make sure that the connector side with the three dots is on the top (see
close-up). Otherwise you risk short-circuits.
9.5.3.3 Installing the BBU in the holder

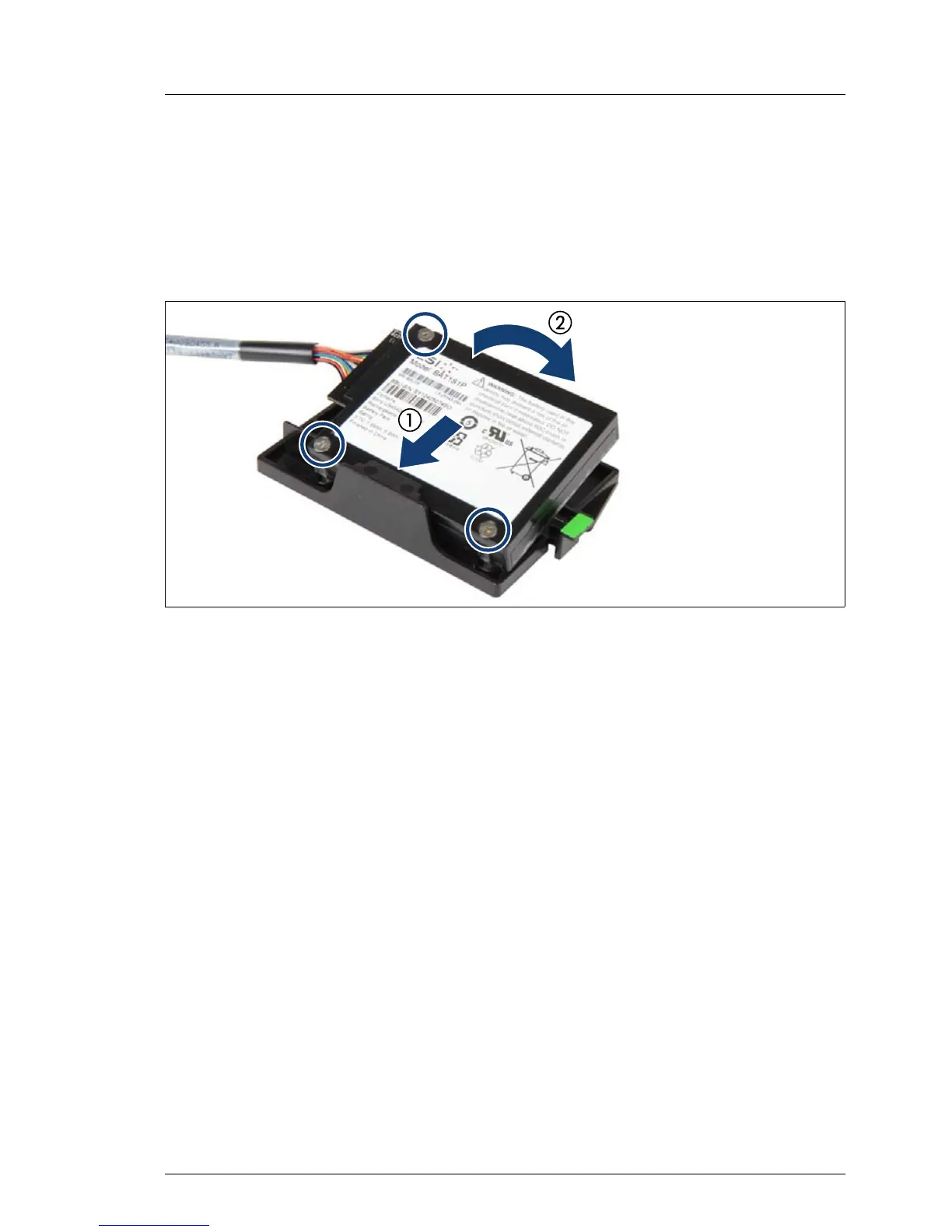

Figure 116: Installing the BBU in the BBU holder
Ê At a slight angle, fit the BBU under the right retaining bracket on the BBU
holder (1).
Ê Fold down the BBU until it locks in place (2).
9.5.3.4 Installing the BBU holder into the chassis
Ê Install the BBU holder into the chassis as described in section "Installing the
FBU holder into the chassis" on page 193.
9.5.3.5 Connecting the BBU cable to a controller
Ê If applicable, install a RAID controller as described in section "Installing
expansion cards" on page 176.
Ê Connect the BBU cable to the RAID controller.
