TX140 S2
Upgrade and Maintenance Manual 147
Hard disk drives / solid state drives
Ê Slide the intrusion switch holder under the front chassis rim as far as it will
go (2).

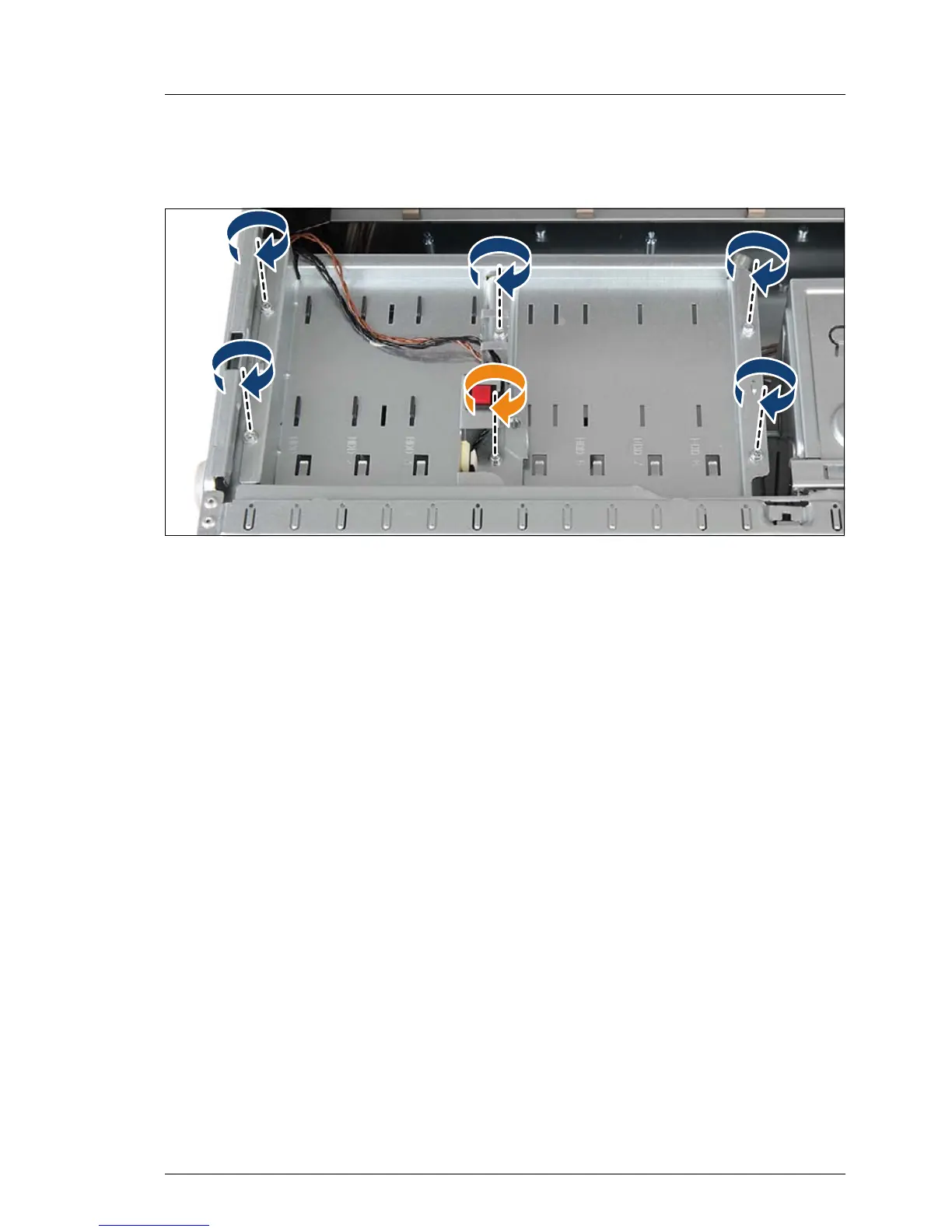

Figure 66: Installing the 3.5-inch HDD bay top cover (C)
Ê Secure the HDD bay top cover to the chassis with five screws (see blue
arrows).
Ê Secure the intrusion switch holder on the HDD bay top cover with one screw
(see orange arrow).
Ê Connect the cables to the SAS backplane (see figure 58).
7.3.6.4 Concluding steps
Ê Reinstall all HDD modules to their original drive bays as described in section
"Installing 3.5-inch HDD modules" on page 134.
Ê "Reassembling" on page 58
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 68
Ê "Enabling BitLocker functionality" on page 90
