TX140 S2 Upgrade and Maintenance Manual 145
Hard disk drives / solid state drives
7.3.6.3 Installing the new 3.5-inch HDD SAS backplane

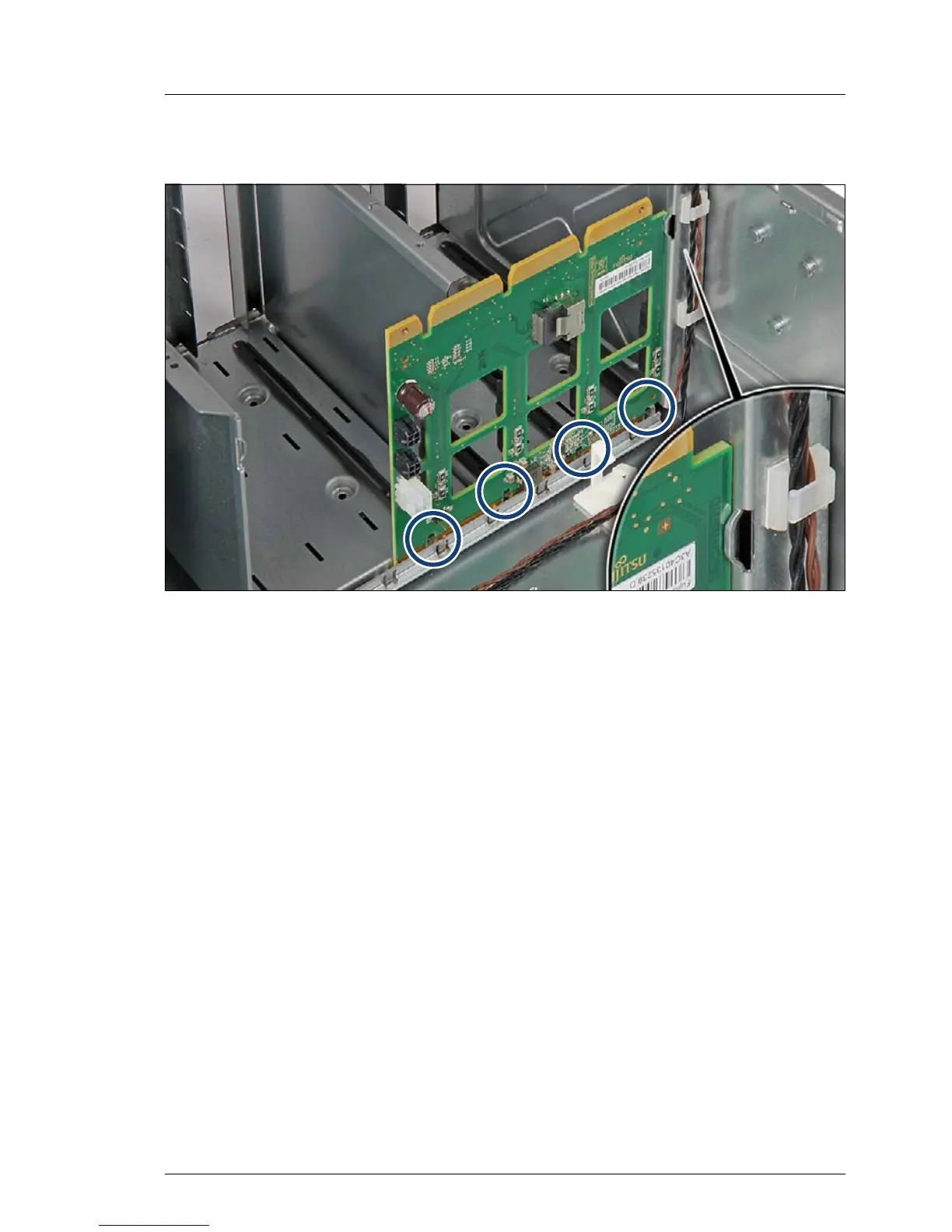

Figure 63: Installing the 3.5-inch HDD SAS backplane
Ê Fit the SAS backplane into the guide on the outer wall of the HDD bay and
lower it into the bottom rim (see close-up).
Ê Ensure that the SAS backplane is properly seated into the bottom rim and
side guide (see circles).
