144 Upgrade and Maintenance Manual TX140 S2
Hard disk drives / solid state drives

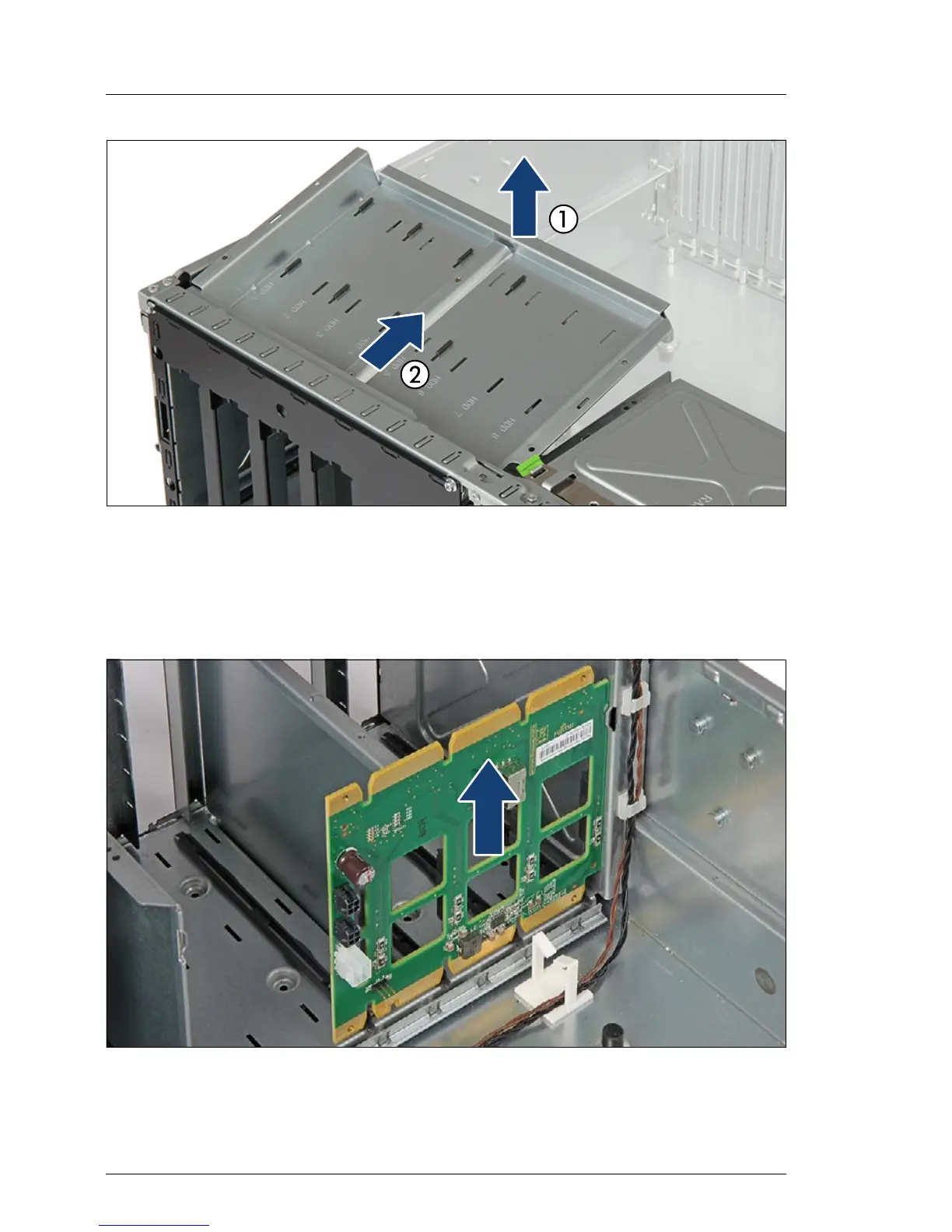

Figure 61: Removing the 3.5-inch HDD bay top cover (C)
Ê Carefully fold up the 3.5-inch HDD bay top cover to disengage it from the
SAS backplane below (1).
Ê Remove the 3.5-inch HDD bay top cover from the chassis (2).
Figure 62: Removing the 3.5-inch HDD SAS backplane
Ê Pull up on the SAS backplane and remove it from the HDD bay in a vertical
motion.
