254 Upgrade and Maintenance Manual
TX140 S2
System board and components

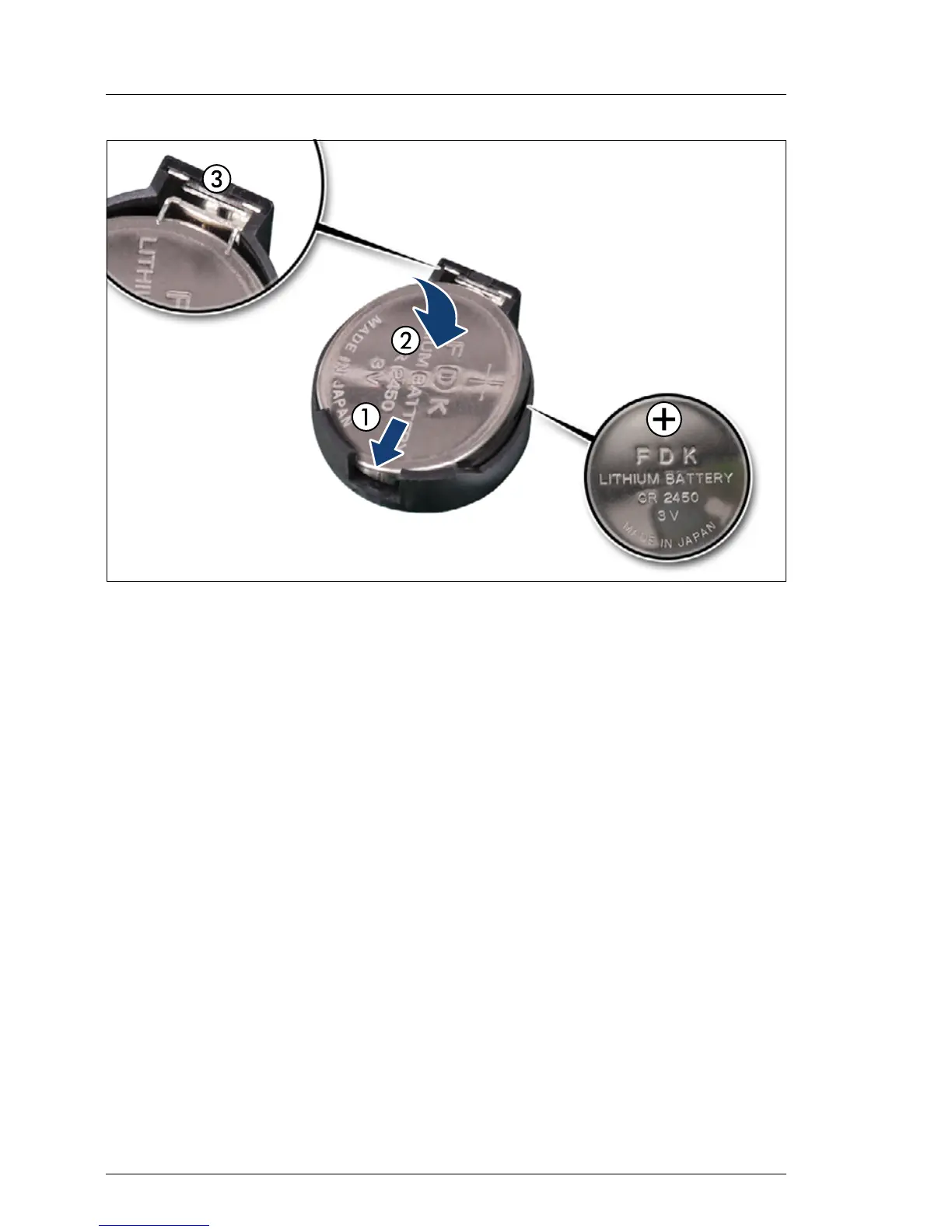

Figure 159: Installing the CMOS battery
Ê At a slight angle, fit the new CMOS battery into its socket as shown (1).
V CAUTION!
Ensure to insert the CMOS battery with the positive pole (label side)
facing up as shown (see close-up).
Ê Fold down the CMOS battery (2) until it locks in place.
Ê Ensure that the locking spring (3) is properly engaged.
14.2.3 Concluding steps
Ê Dispose of the CMOS battery in accordance with local regulations
concerning special waste.
Ê "Reassembling" on page 58
Ê "Connecting the server to the mains" on page 67
Ê "Verifying system information backup / restore" on page 79
Ê "Verifying the system time settings" on page 87
Ê "Switching on the server" on page 68
