Fujitsu PRIMERGY TX140 S2 - 5.5 Connecting the server to the mains

TX140 S2 Upgrade and Maintenance Manual 53
Basic hardware procedures

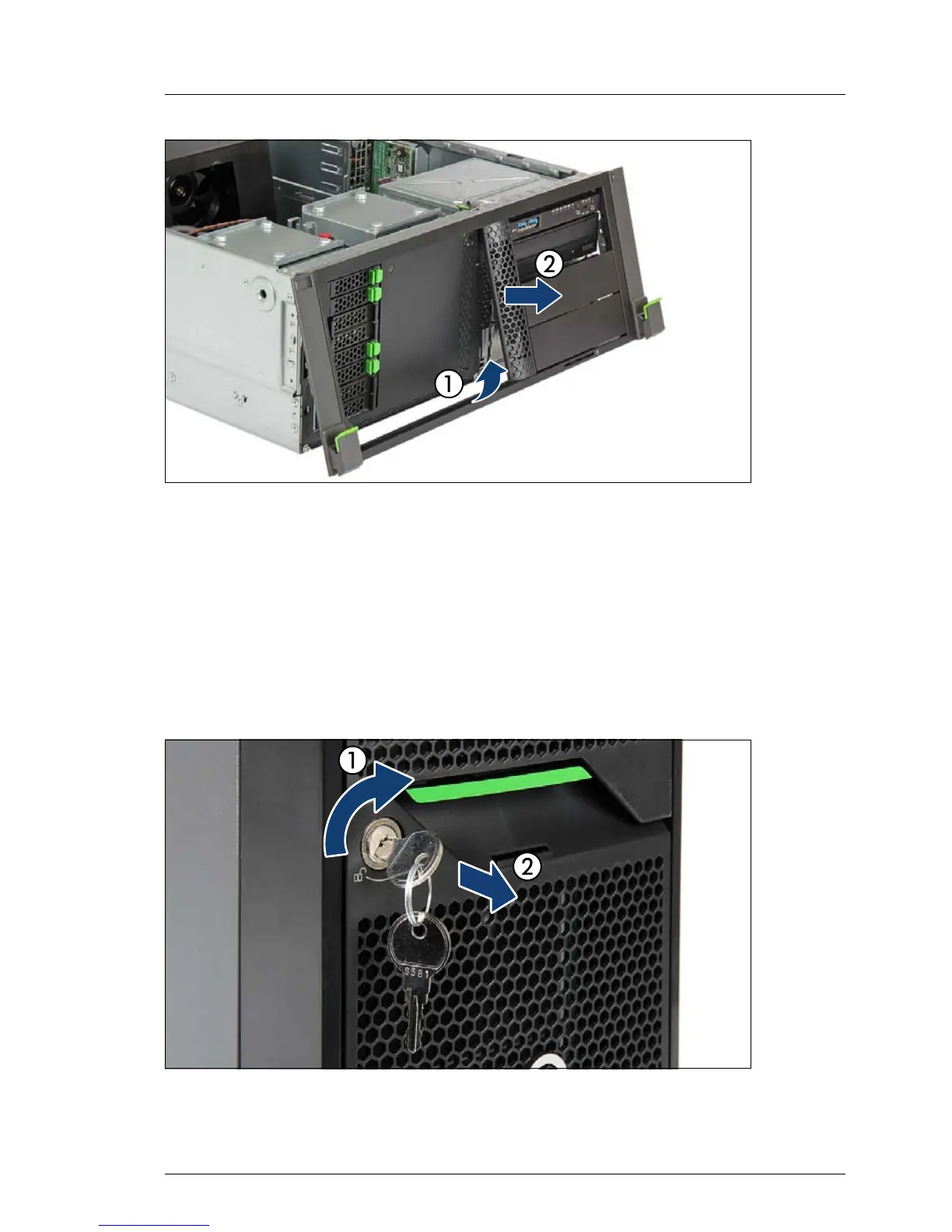

Figure 8: Removing the rack front cover (B)
Ê Carefully fold down and unhook the rack front cover (1).
Ê Detach and remove the rack front cover from the chassis (2).
4.4.2 Tower model
4.4.2.1 Removing the side cover
Figure 9: Unlocking the server
Ê Insert the key into the lock on the server front.
