TX140 S2
Upgrade and Maintenance Manual 125
Hard disk drives / solid state drives
7.2.3.3 Installing a 2.5-inch HDD / SSD module

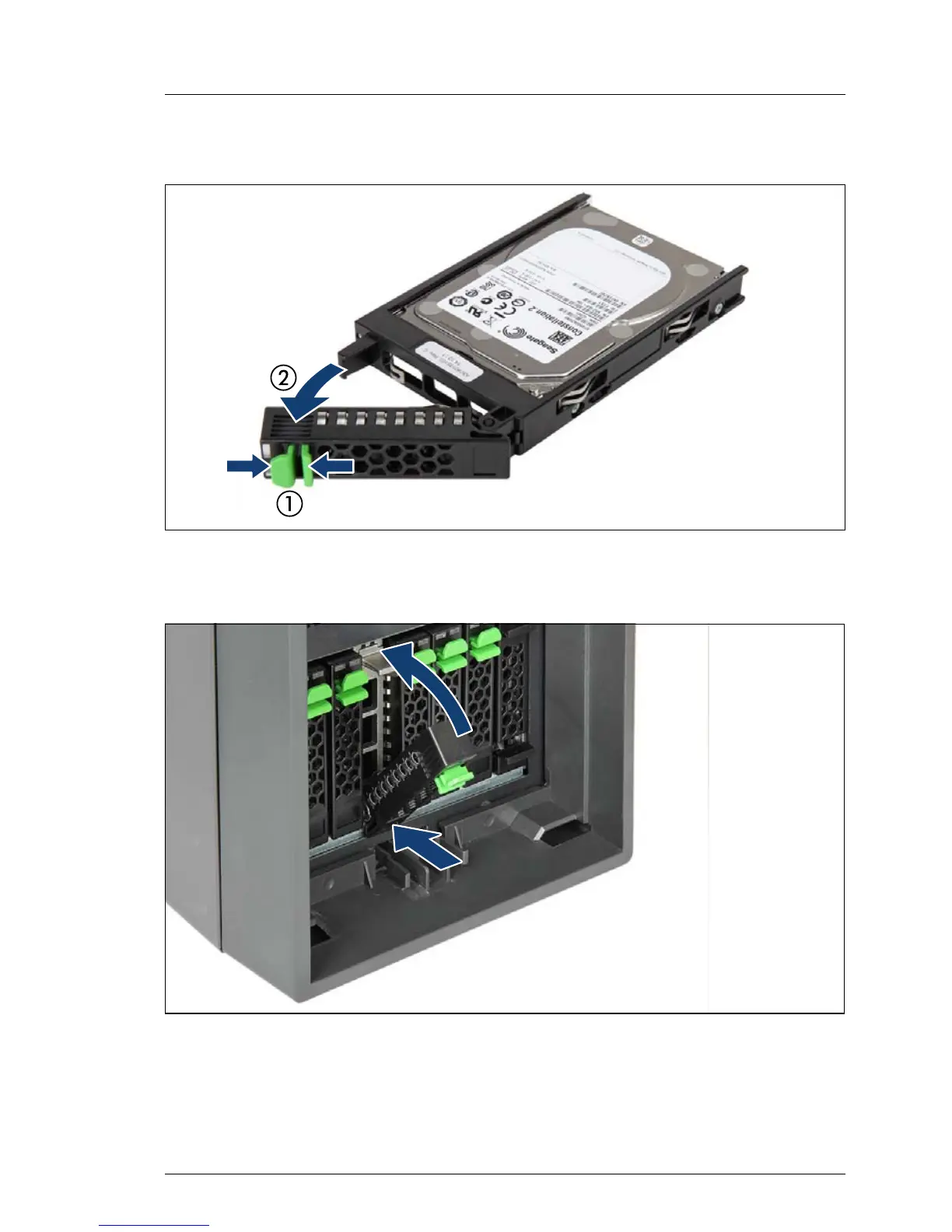

Figure 45: Opening the 2.5-inch HDD / SSD module locking lever
Ê Pinch the green locking clips (1) and open the locking lever (2).
Figure 46: Inserting the 2.5-inch HDD / SSD module
Ê Insert the HDD / SSD module into a drive bay and carefully push back as far
as it will go.
Ê Close the locking lever to lock the hard disk drive in place.
