182 Upgrade and Maintenance Manual
TX140 S2
Expansion cards and backup units
9.4.2.3 Installing a PCI slot bracket
V CAUTION!
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.

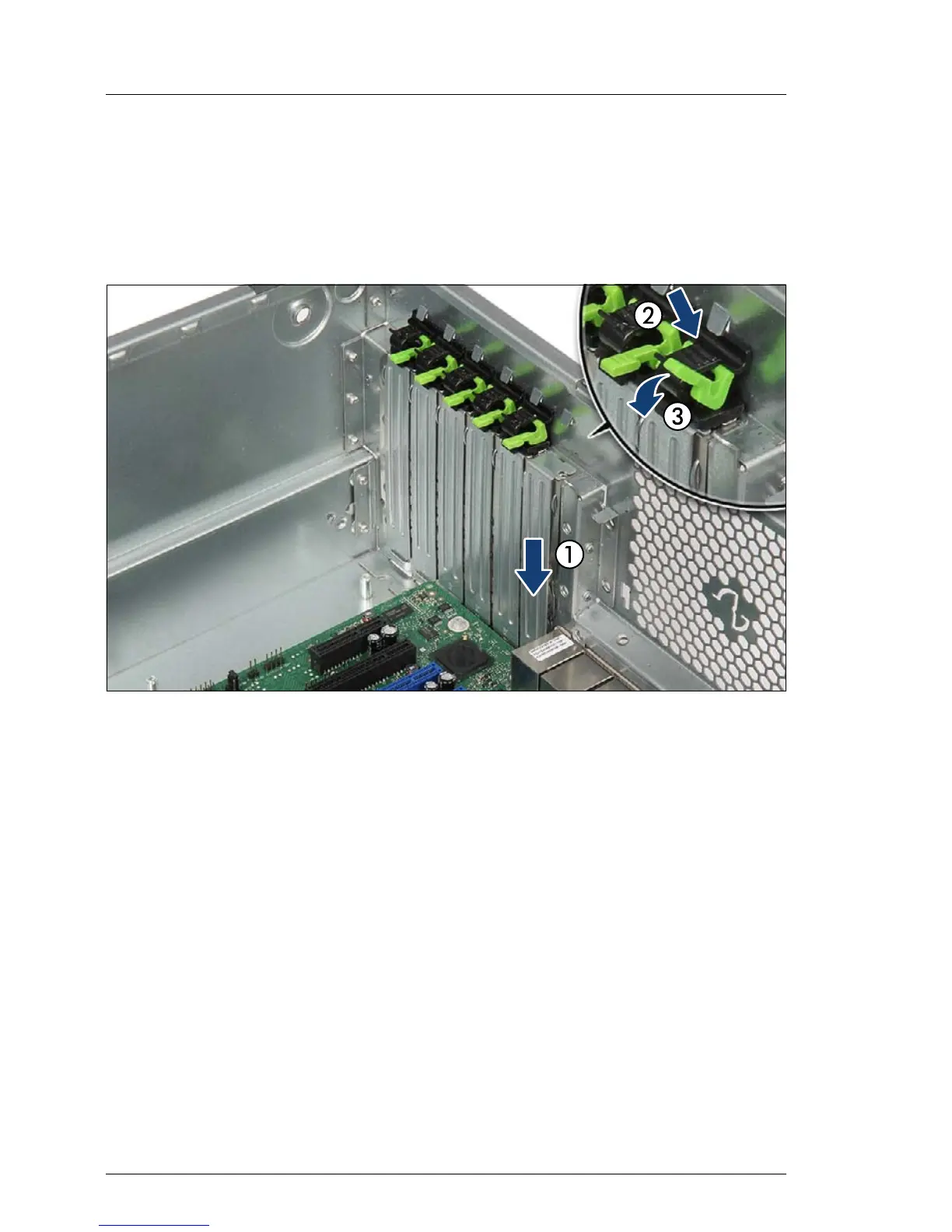

Figure 102: Installing a PCI slot bracket
Ê Insert a PCI slot bracket into the unused PCI slot opening (1).
Ê Clip on the PCI slot bracket clamp (2).
Ê Fold down the locking handle on the PCI slot bracket clamp until it locks in
place (3).
9.4.2.4 Concluding steps
Ê "Installing the fan module" on page 152
Ê "Reassembling" on page 58
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 68
Ê "Enabling BitLocker functionality" on page 90
