TX140 S2
Upgrade and Maintenance Manual
191
Expansion cards and back
up un
its
9.5.2.2
Installing TFM to the RAID controller (if applicab
le)

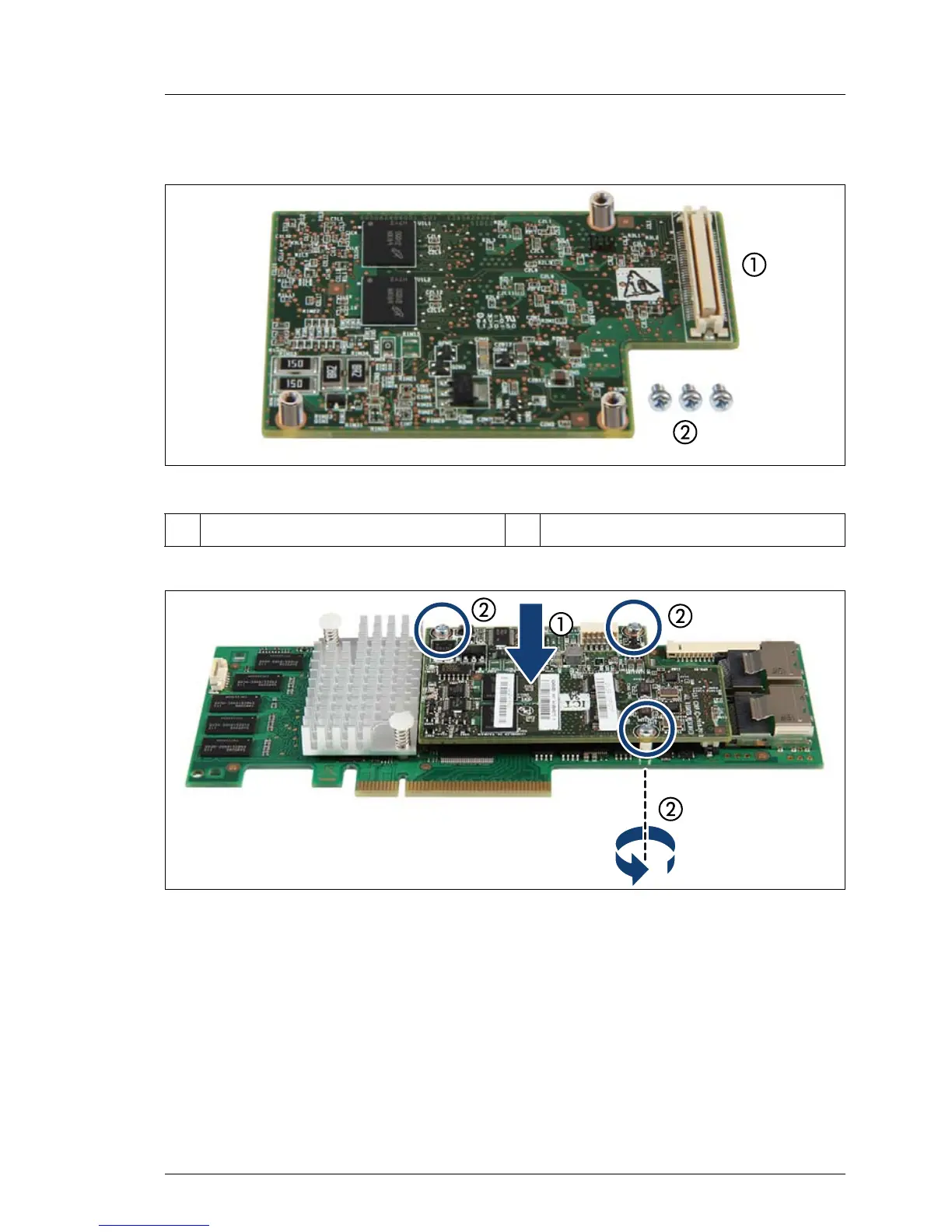

Figure 107: TFM kit
Figure 108: Installing TFM
Ê
Fit the sp
acer bolts of the TFM on the RAID controller (1).
Ê
Secure the TFM on the RAID c
ontroller with the three screws (2)
.
1
TFM
2
Screws
