324 Upgrade and Maintenance Manual
TX140 S2
Appendix
17.2.1.3 I/O panel connectors

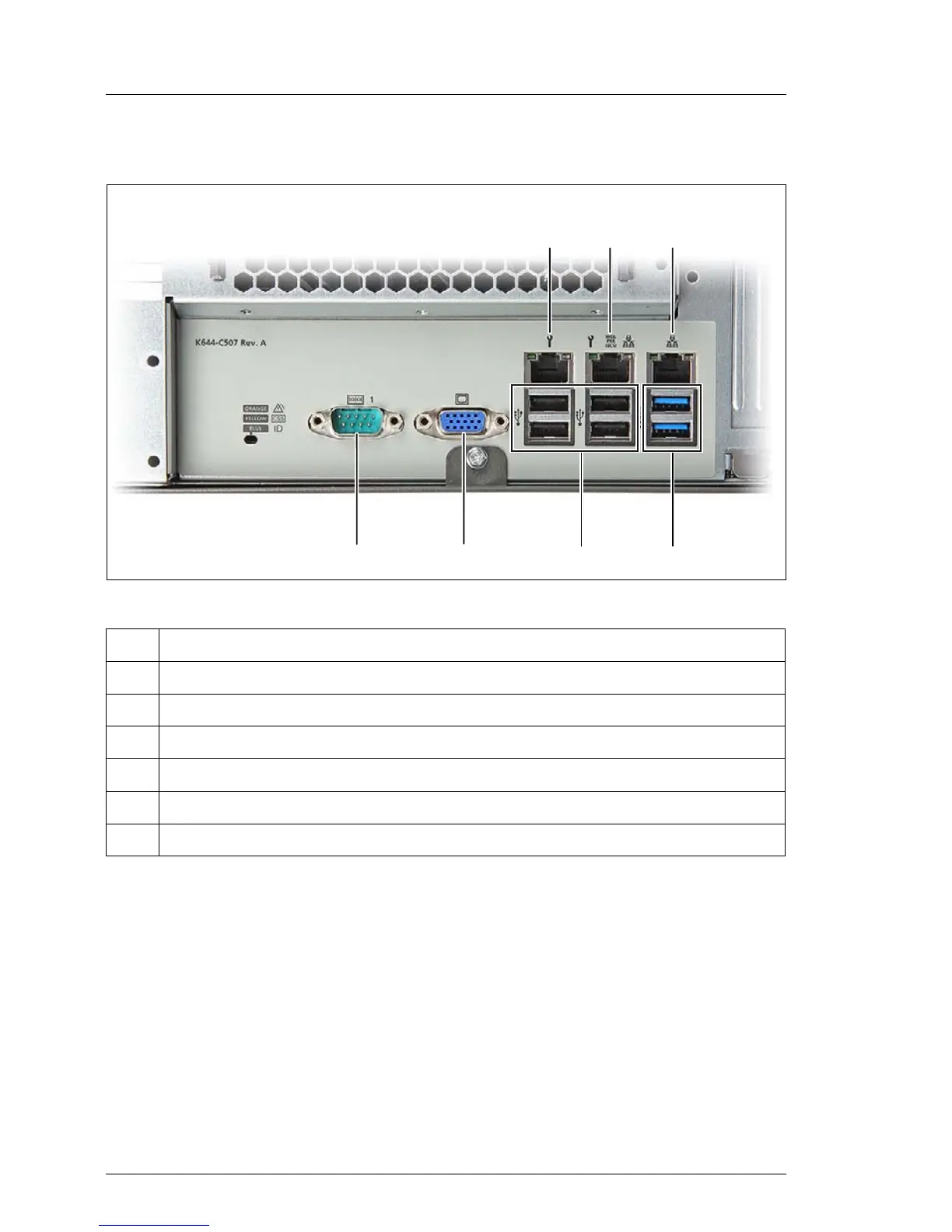

Figure 226: I/O panel connectors
Depending on BIOS settings, the shared LAN connector may also be used as
a management LAN connector. For further information, please refer to the
corresponding BIOS Setup Utility reference manual.
The serial connector COM1 can be used as default interface or to communicate
with the iRMC S4.
1 Management LAN connector, for iRMC S4 server management function
2 Shared LAN connector (LAN1)
3 Standard LAN connector (LAN2)
4 USB 3.0 connectors
5 USB 2.0 connectors
6 Video connector (VGA)
7 Serial connector COM1
햷
햸
햵
햲 햴햳
햶
