TX140 S2 Upgrade and Maintenance Manual 177
Expansion cards and backup units
9.4.1.2 Removing the PCI slot bracket

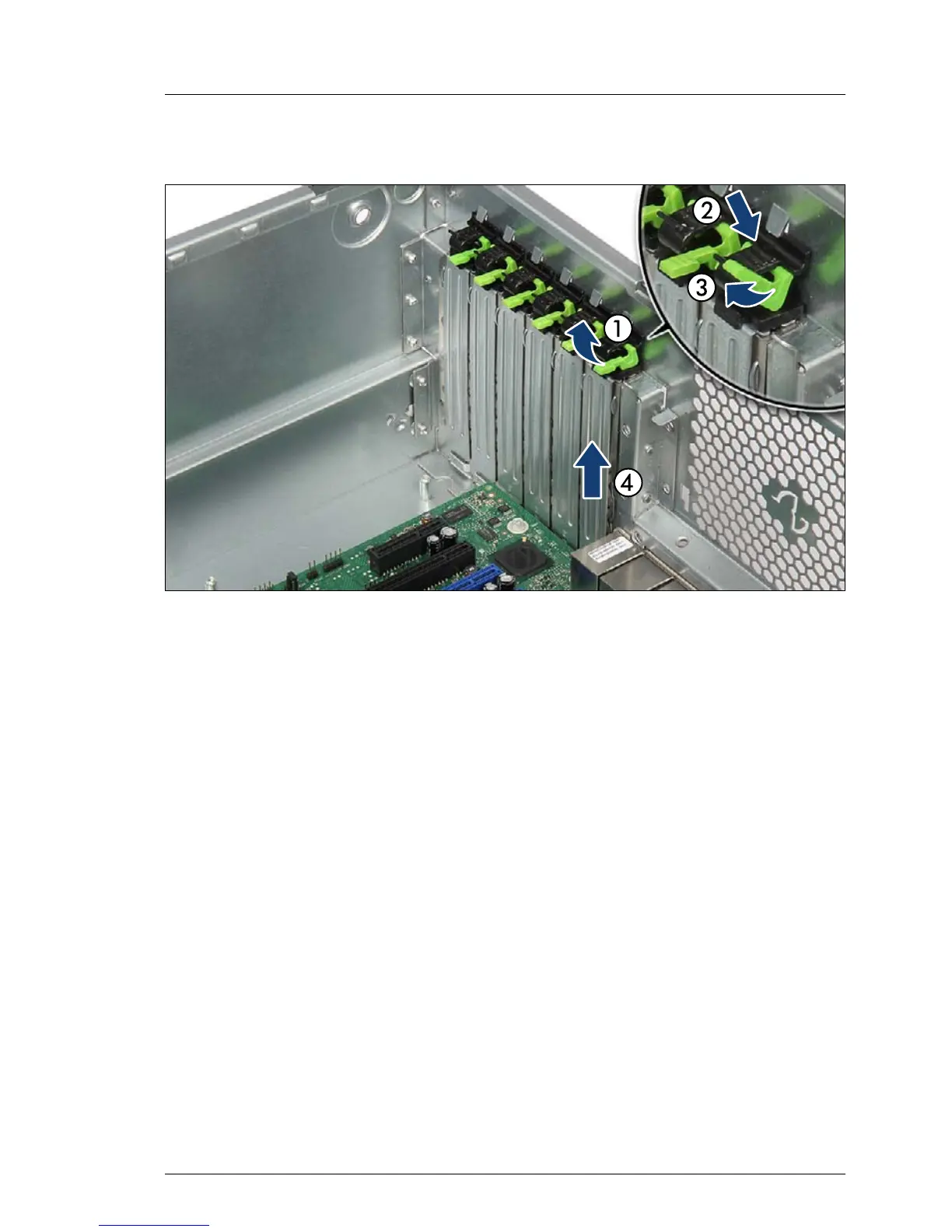

Figure 98: Removing the PCI slot bracket
Ê Fold up the locking handle on the slot bracket clamp (1).
Ê Press down on the slot bracket clamp to disengage it (2).
Ê Remove the slot bracket clamp (3).
Ê Remove the slot bracket (4).
V CAUTION!
Keep the slot bracket for further use.
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
