Fujitsu PRIMERGY TX140 S2 Upgrade And Maintenance Manual

240 Upgrade and Maintenance Manual TX140 S2
Accessible drives
12.3.2 Removing an accessible drive
Ê Disconnect all cables from the accessible drive.
Ê Press out on the locking latch to disengage the accessible drive locking bar
(see figure 147).
Ê Fold up the accessible drive locking bar.

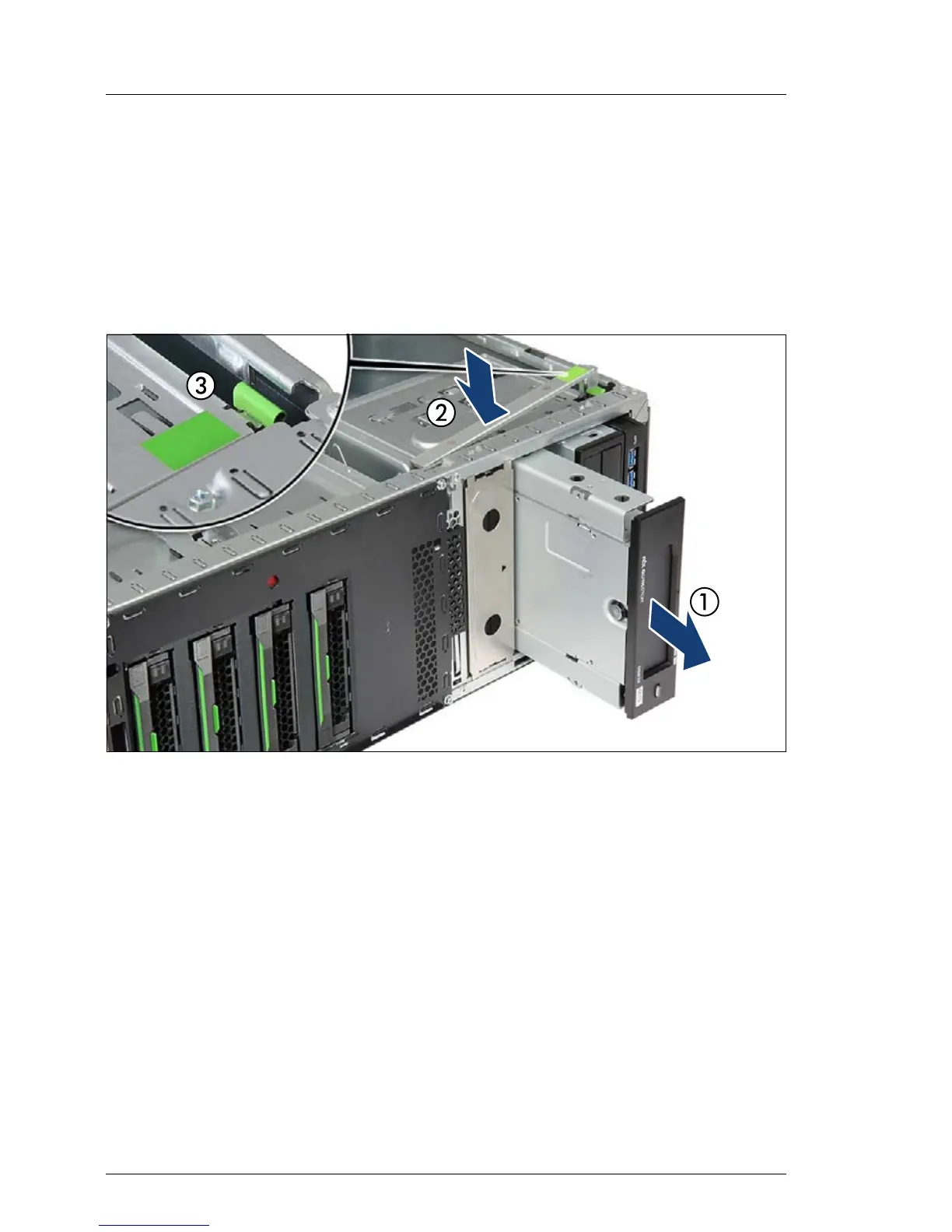

Figure 150: Removing the accessible drive
Ê Carefully pull the accessible drive out of its installation bay (1).
Ê Close the locking bar (2) until it locks in place (3).
