TX140 S2
Upgrade and Maintenance Manual 169
Expansion cards and backup units
Ê Carefully shift the slot bracket towards the controller until the plug shells
engage with the cut-outs in the slot bracket connector panel.
Figure 88: Mounting the PCI slot bracket (B)

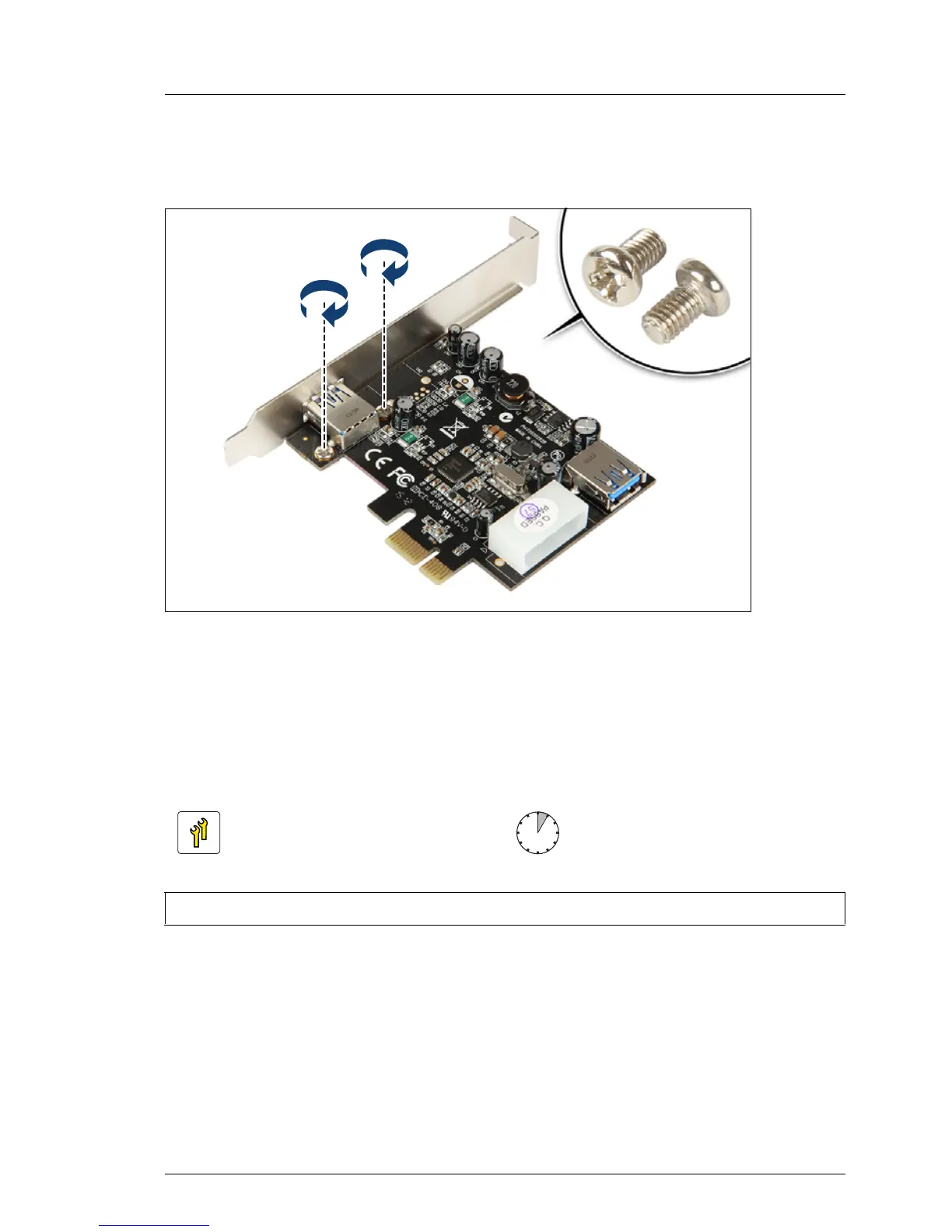

Ê Secure the slot bracket to the controller with the two M3 x 5 mm screws
contained in the expansion card kit.
9.2.2 Removing a slot bracket
Removing the slot bracket
Ê Remove the two screws.
Ê Remove the controller from the mounting tabs on the slot bracket.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
