132 Upgrade and Maintenance Manual
TX140 S2
Hard disk drives / solid state drives
7.2.6.3 Installing the new 2.5-inch HDD SAS / SATA backplane

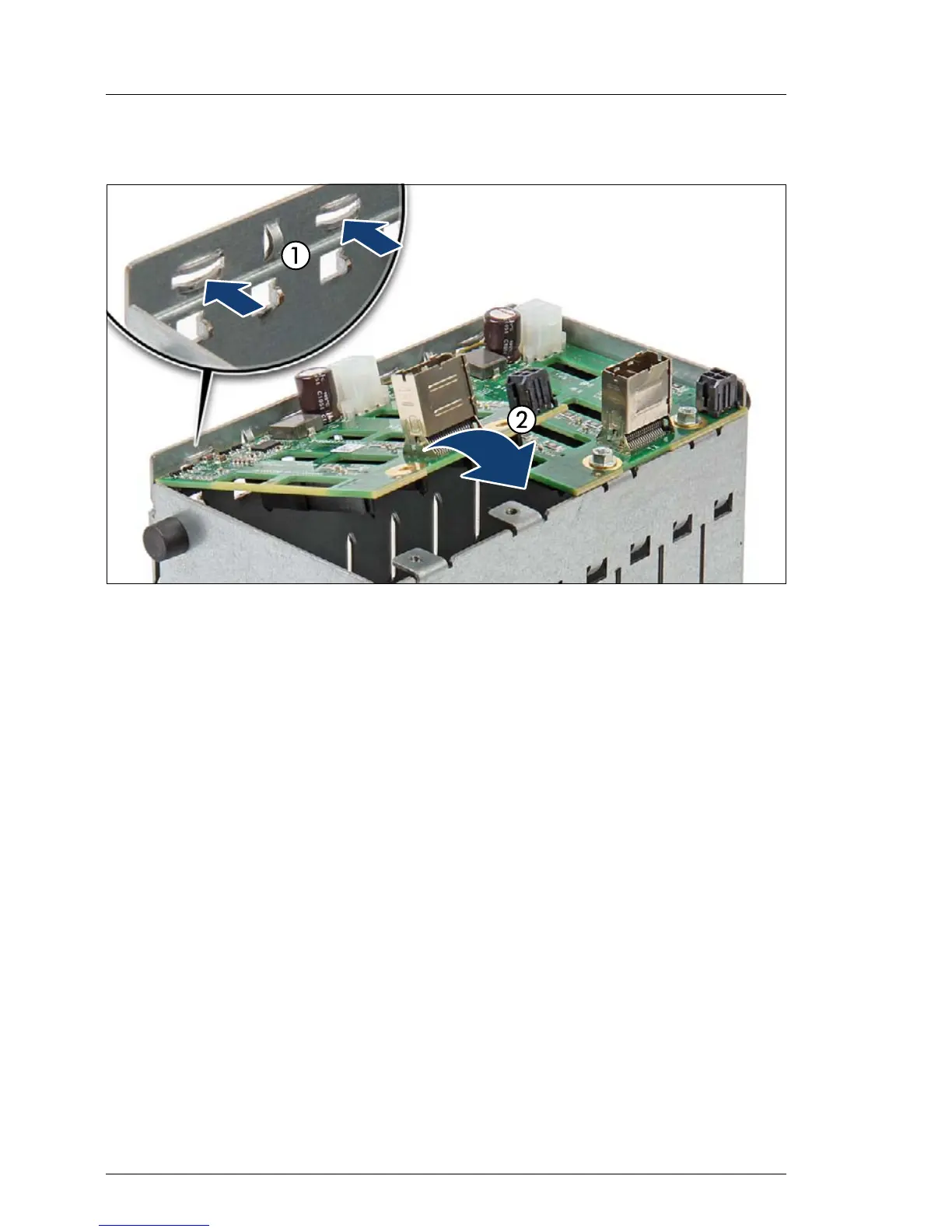

Figure 51: Installing the SAS / SATA backplane
Ê At a slight angle, fit the SAS / SATA backplane into the two guides on the
drive cage (1).
Ê Fold in the SAS / SATA backplane (2).
Ê Secure the SAS / SATA backplane with the two screws (see figure 49).
Ê Connect all cables to the SAS / SATA backplane (see figure 49).
I For a complete cabling overview, please refer to section "Cabling plans"
on page 301.
7.2.6.4 Concluding steps
Ê "Reassembling" on page 58
Ê Reinstall all HDD / SSD modules to their original drive bays as described in
section "Installing 2.5-inch HDD / SSD modules" on page 124.
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 68
Ê "Enabling BitLocker functionality" on page 90
