Fujitsu PRIMERGY TX140 S2 - Installing the HDD Bay Cover

64 Upgrade and Maintenance Manual TX140 S2
Basic hardware procedures
4.5.2.2 Installing the HDD bay cover

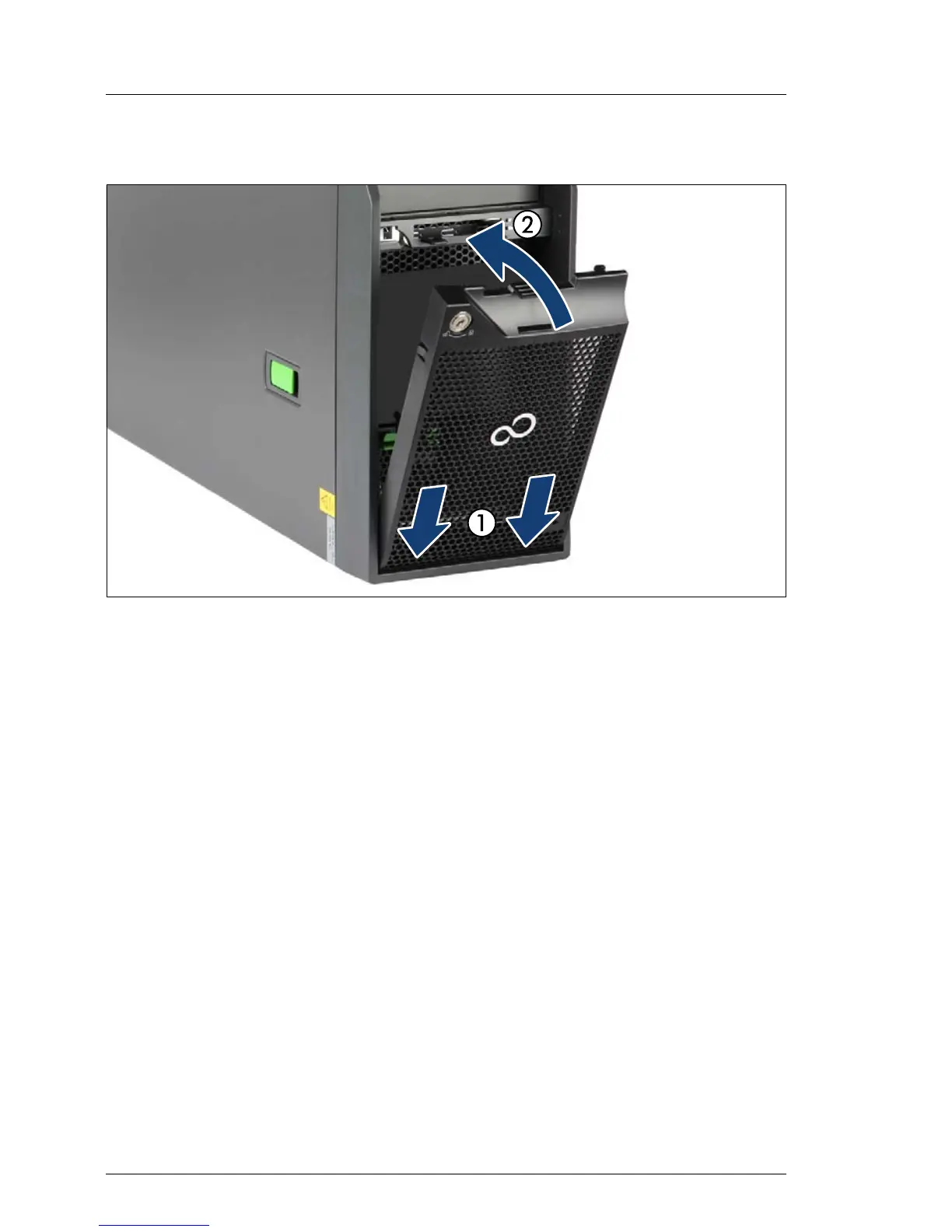

Figure 20: Installing the HDD bay cover
Ê Insert the HDD bay cover into the front cover as shown (1).
Ê Fold in the HDD bay cover until it locks in place (2).
