Fujitsu PRIMERGY TX140 S2 Upgrade And Maintenance Manual

260 Upgrade and Maintenance Manual TX140 S2
System board and components
14.3.3.3 Installing the new UFM

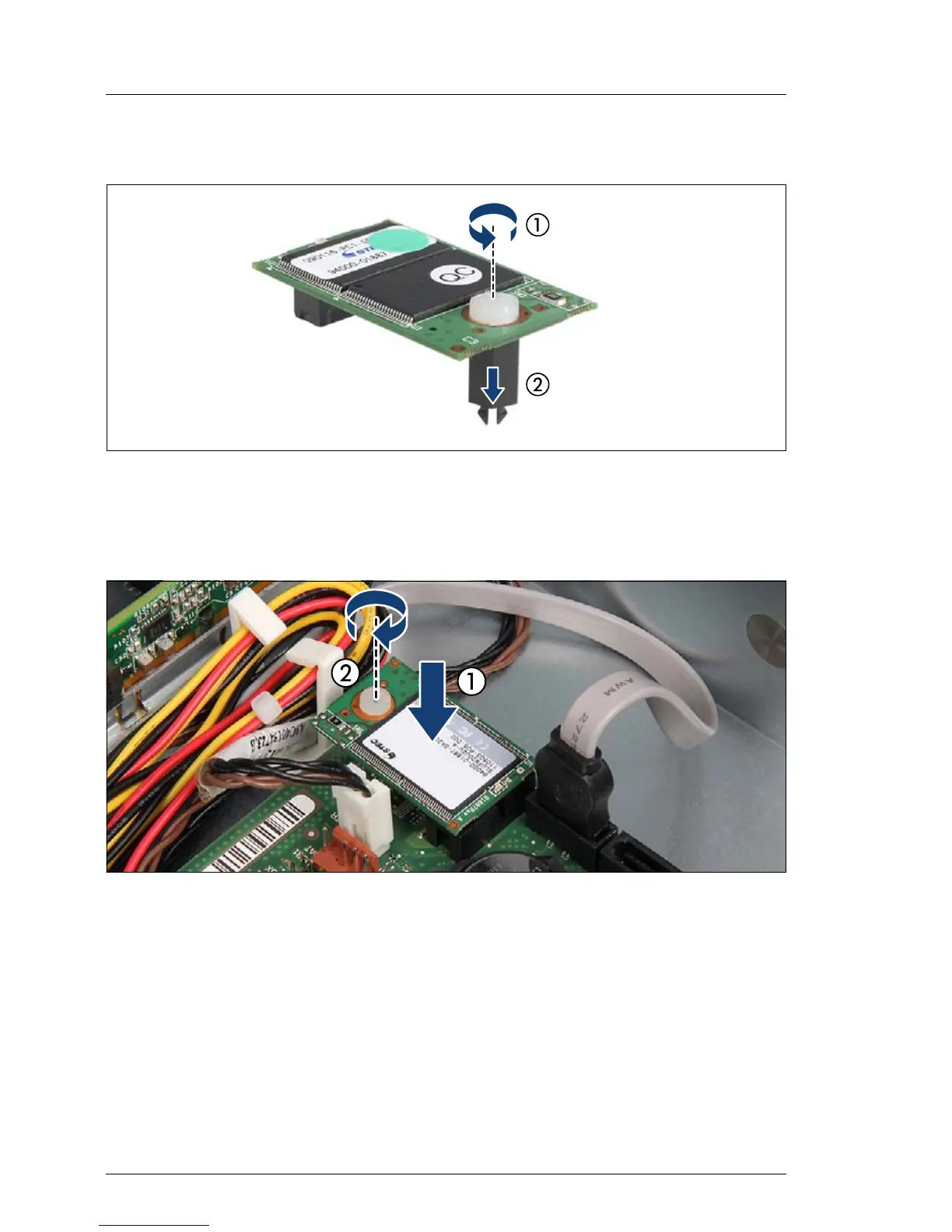

Figure 165: Preparing the new UFM
Ê Remove the nylon screw from the new UFM (1).
Ê Remove the UFM spacer (2).
Figure 166: Installing the UFM
Ê Fit the UFM on the UFM connector and the remaining UFM spacer (1).
Ê Secure the UFM to the UFM spacer with the nylon screw (2).
