Fujitsu PRIMERGY TX140 S2 - Installing the Side Cover

TX140 S2 Upgrade and Maintenance Manual 65
Basic hardware procedures
4.5.2.3 Installing the side cover

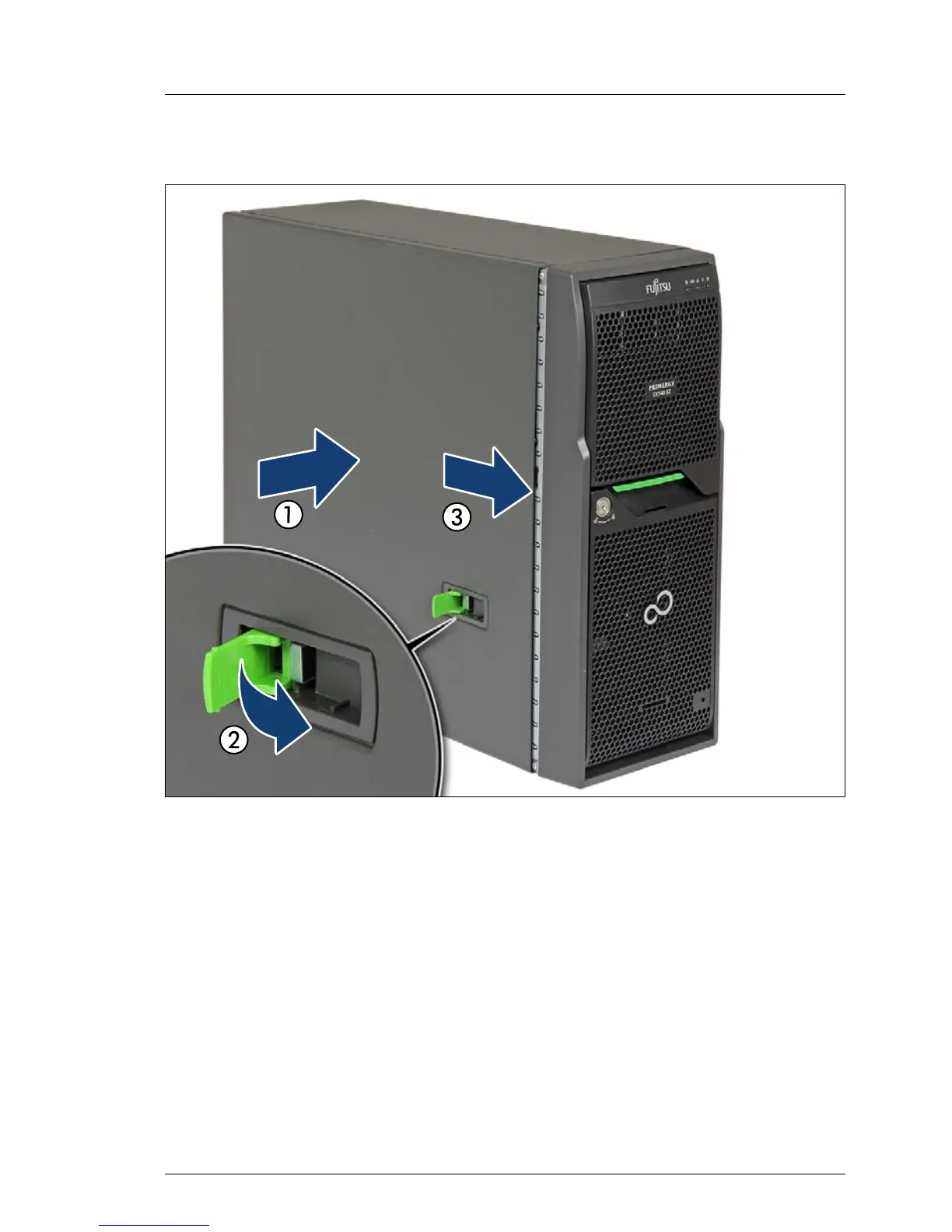

Figure 21: Installing the side cover (tower server)
Ê Open the locking lever on the side cover.
Ê Fit the side cover on the chassis, recessed by 2 cm (1).
Ê Close the locking lever on the side cover (2). This will slide the top cover shut
engaging the locking mechanism (3).
Ê Reconnect all cables except the power cord to the server rear.
