TX140 S2
Upgrade and Maintenance Manual 277
System board and components
Ê Using a small pair of combination pliers, press together the hooks on the
power cable clamp (1) and remove it from the defective system board (2).
14.5.3 Installing the new system board

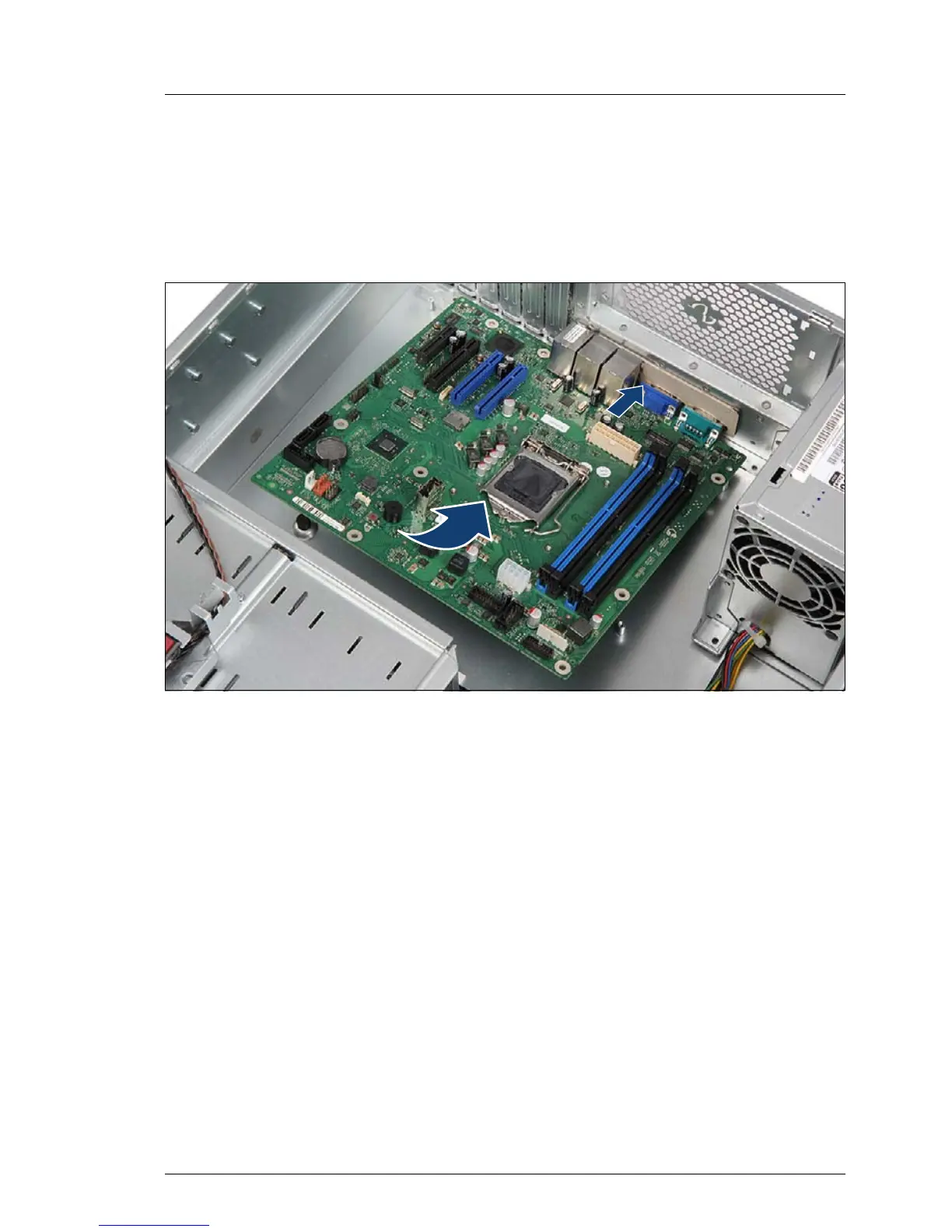

Figure 180: Installing the system board (A)
Ê Hold the system board by the memory module ejectors and a PCI slot.
V CAUTION!
– Do not lift or handle the system board by any of its heat sinks!
– Ensure not to damage the EMI springs to comply with applicable
EMC regulations and satisfy cooling requirements and fire
protection measures.
Ê At a slight angle, lower the system board into the chassis.
