276 Upgrade and Maintenance Manual
TX140 S2
System board and components
Ê Carefully shift the system board towards the server front until the plug shells
disengage from the cut-outs in the connector panel (2).

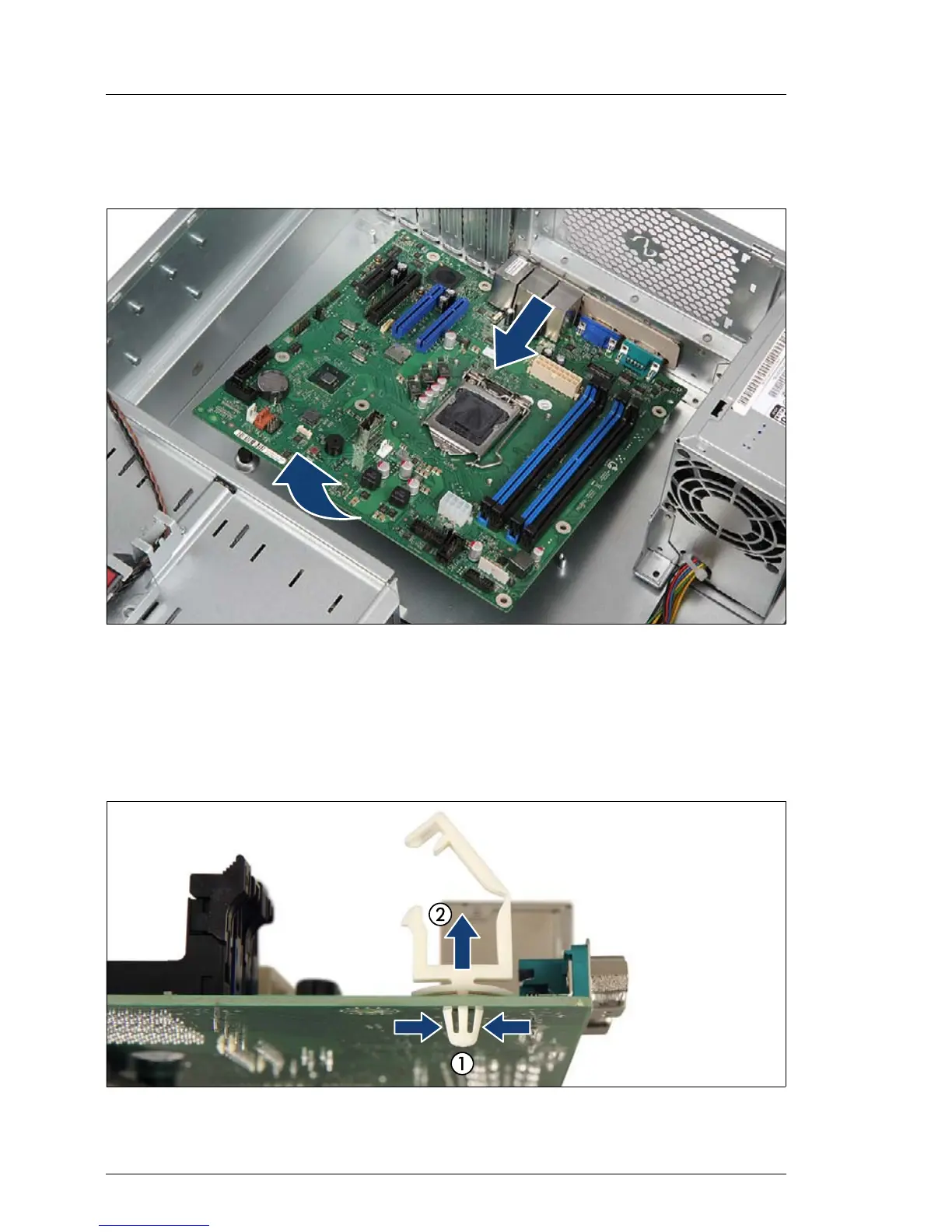

Figure 178: Removing the system board
Ê Hold the defective system board by the memory module ejectors and a PCI
slot and at a slight angle lift it out of the chassis.
Ê If applicable, remove the TPM as described in section "Removing the TPM"
on page 267.
Figure 179: Removing the power cable clamp
