TX140 S2
Upgrade and Maintenance Manual 117
Power supply
6.4.2 Removing the standard power supply unit
Ê Remove the standard power supply unit as described in section "Removing
the defective standard power supply unit" on page 101.
6.4.3 Installing the upgrade kit

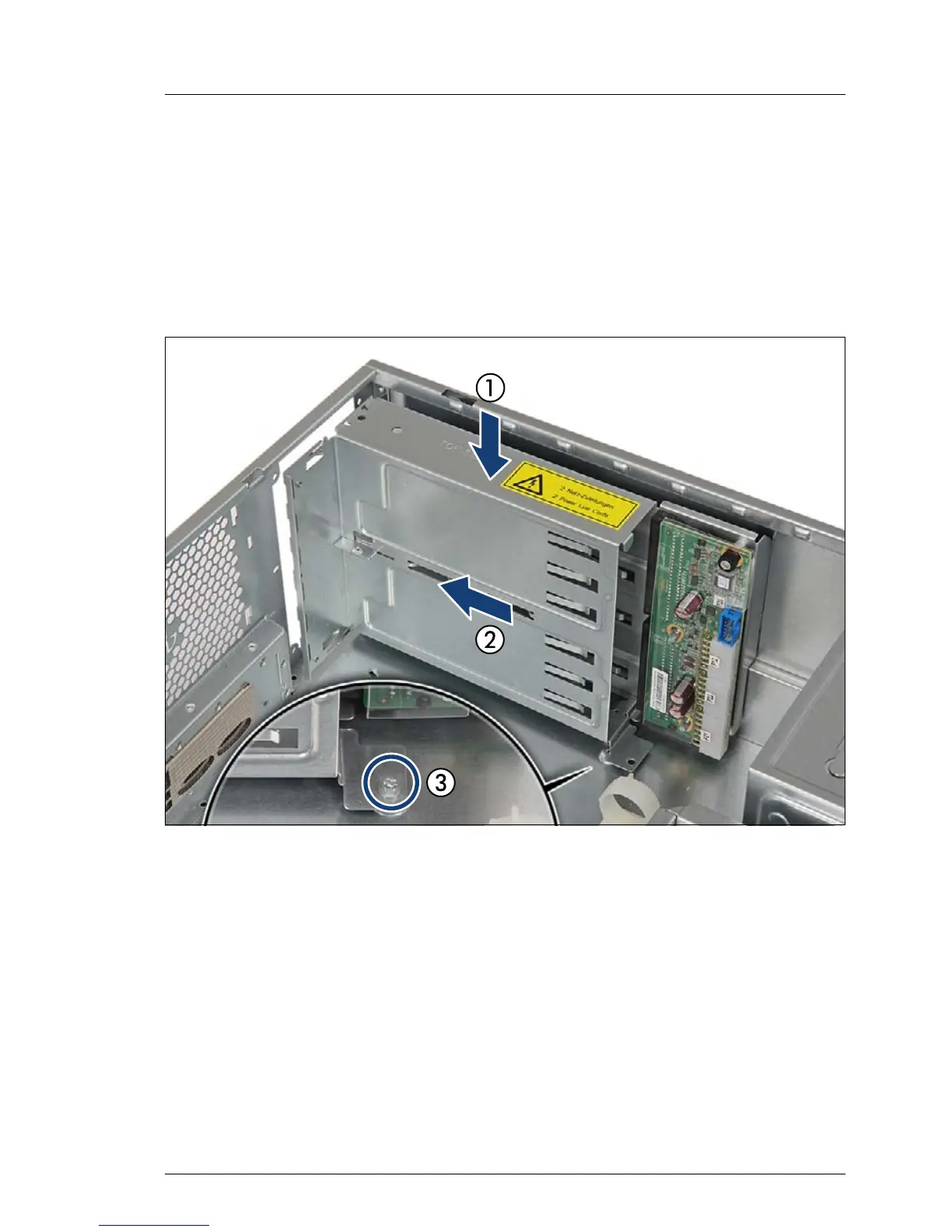

Figure 40: Installing the PSU cage
Ê Insert the PSU cage into the chassis (1).
Ê Slide the new PSU cage towards the rear of the chassis (2).
Ê Secure the PSU cage with one screw (3).
Ê Connect the two power cables to the power distribution board (see figure
38).
