Upgrade and Mai
ntenance Manual
TX140
S2
Power supply

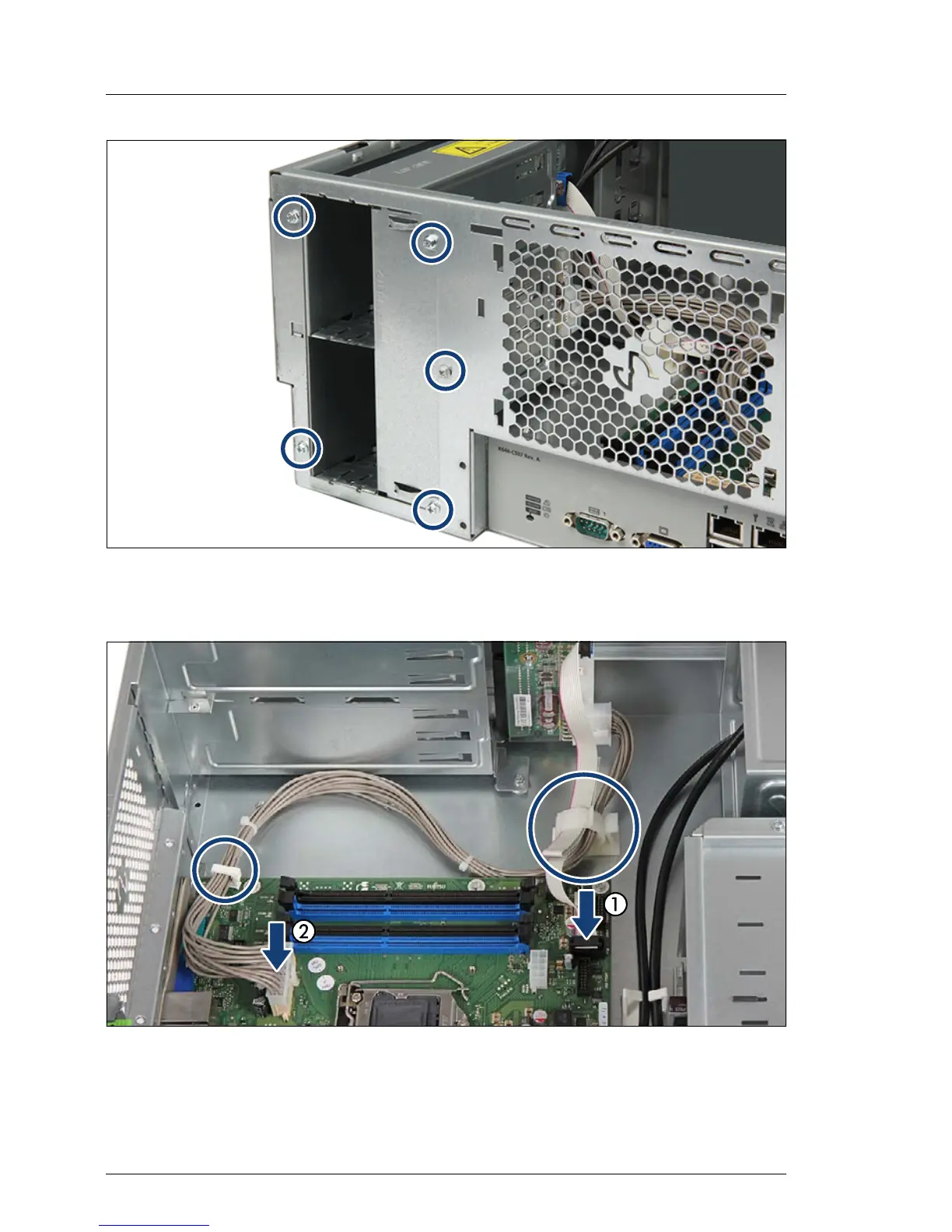

Figure 41: Securing the PSU cage
Ê
Secure the PSU cage to the chassis with five screws (see circles)
Figure 42: Connecting power cables to t
he system board
Ê
Connect the black power connector to system board connector "PC2009" (1)
(see section
"Cabling plans" on page
301
).
117
119
