TX140 S2
Upgrade and Maintenance Manual 143
Hard disk drives / solid state drives

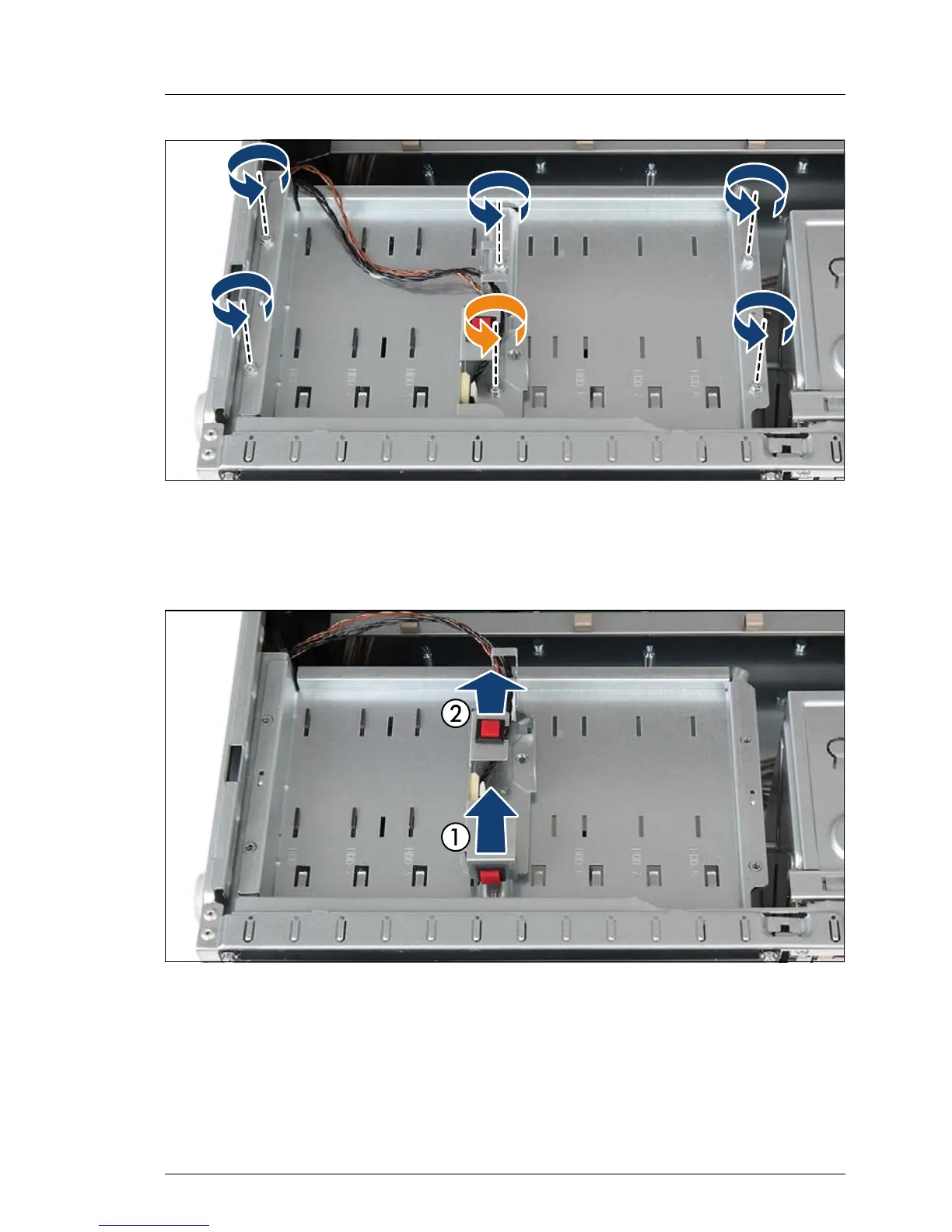

Figure 59: Removing the 3.5-inch HDD bay top cover (A)
Ê Remove five screws from the 3.5-inch HDD bay top cover (see blue arrows).
Ê Remove one screw from the intrusion switch holder (see orange arrow).
Figure 60: Removing the 3.5-inch HDD bay top cover (B)
Ê Slide back the intrusion switch holder until it disengages from the HDD bay
top cover (1).
Ê Remove the intrusion switch holder (2) and set aside.
Ê Leave the intrusion switch cable connected to the system board.
