264 Upgrade and Maintenance Manual
TX140 S2
System board and components

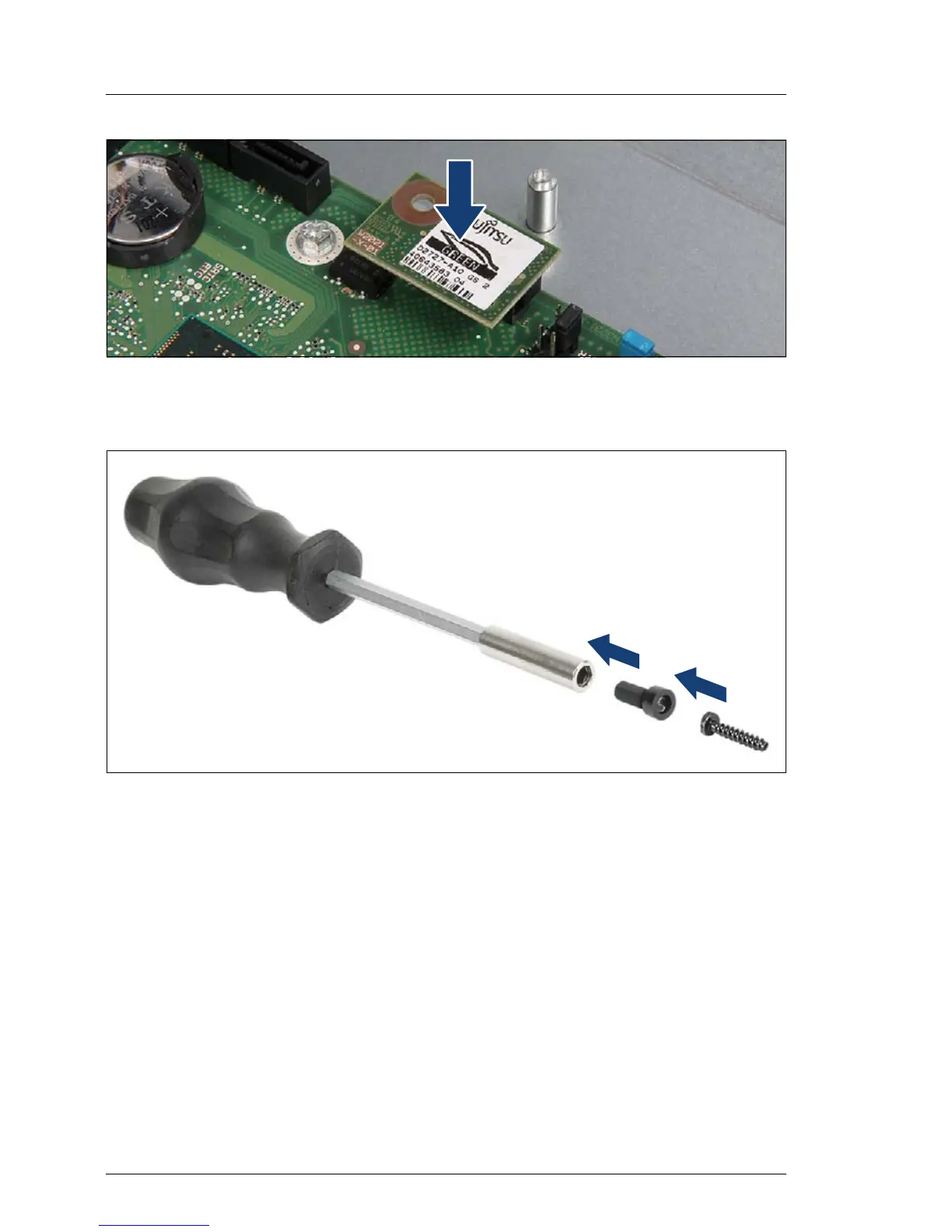

Figure 171: Installing the TPM
Ê Connect the TPM to the system board.
Figure 172: TPM bit insert
Ê Attach the TPM bit insert or TPM module fixing tool (Japanese market) to a
bit screw driver.
