TX140 S2
Upgrade and Maintenance Manual 203
Expansion cards and backup units

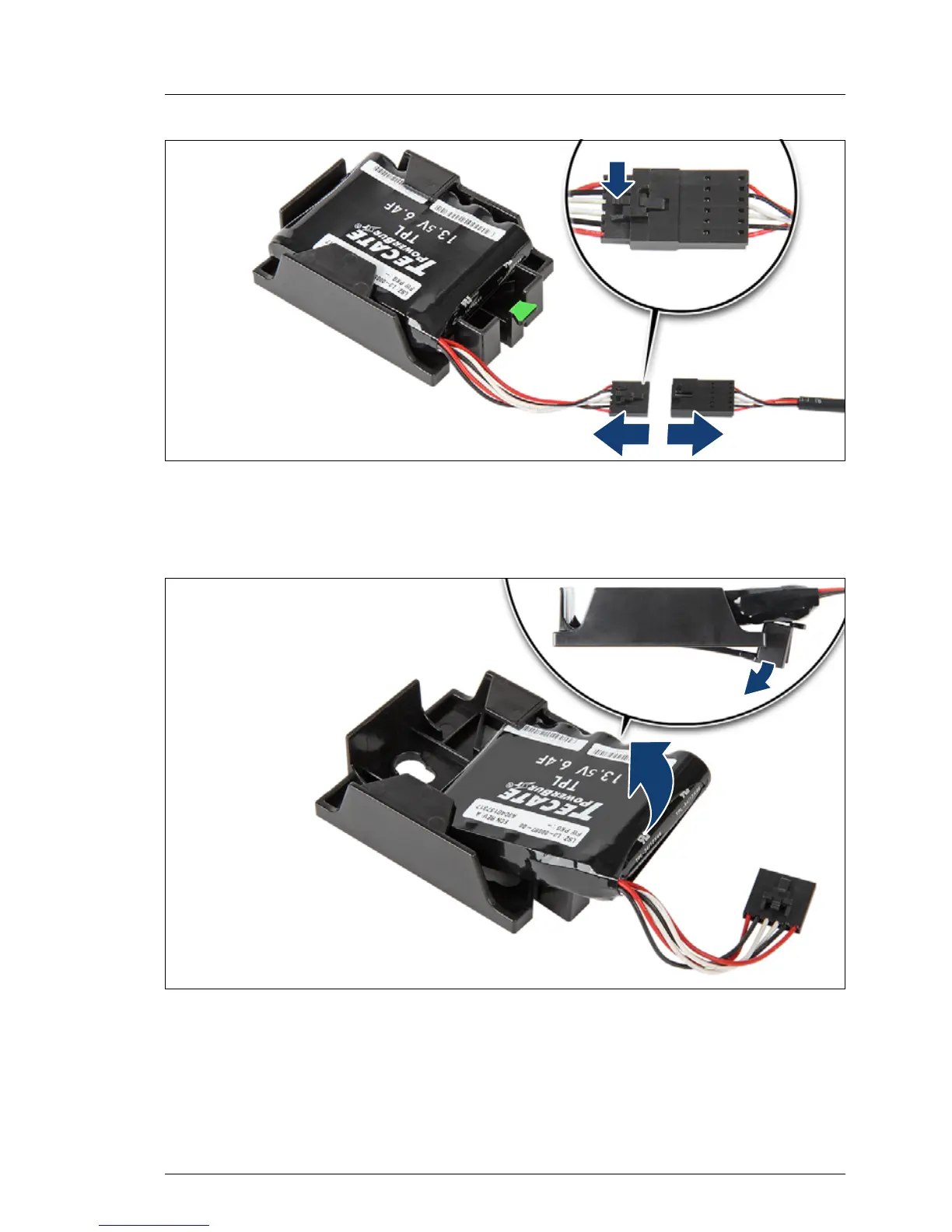

Figure 119: Disconnecting the FBU adapter cable from the FBU
Ê Press down on the locking latch on the FBU cable (see close-up) and
disconnect the FBU adapter cable.
Figure 120: Removing the FBU from the holder
Ê At a slight angle, slide the FBU from under the retaining brackets of the
holder and remove it.
