TX140 S2
Upgrade and Maintenance Manual 235
Accessible drives

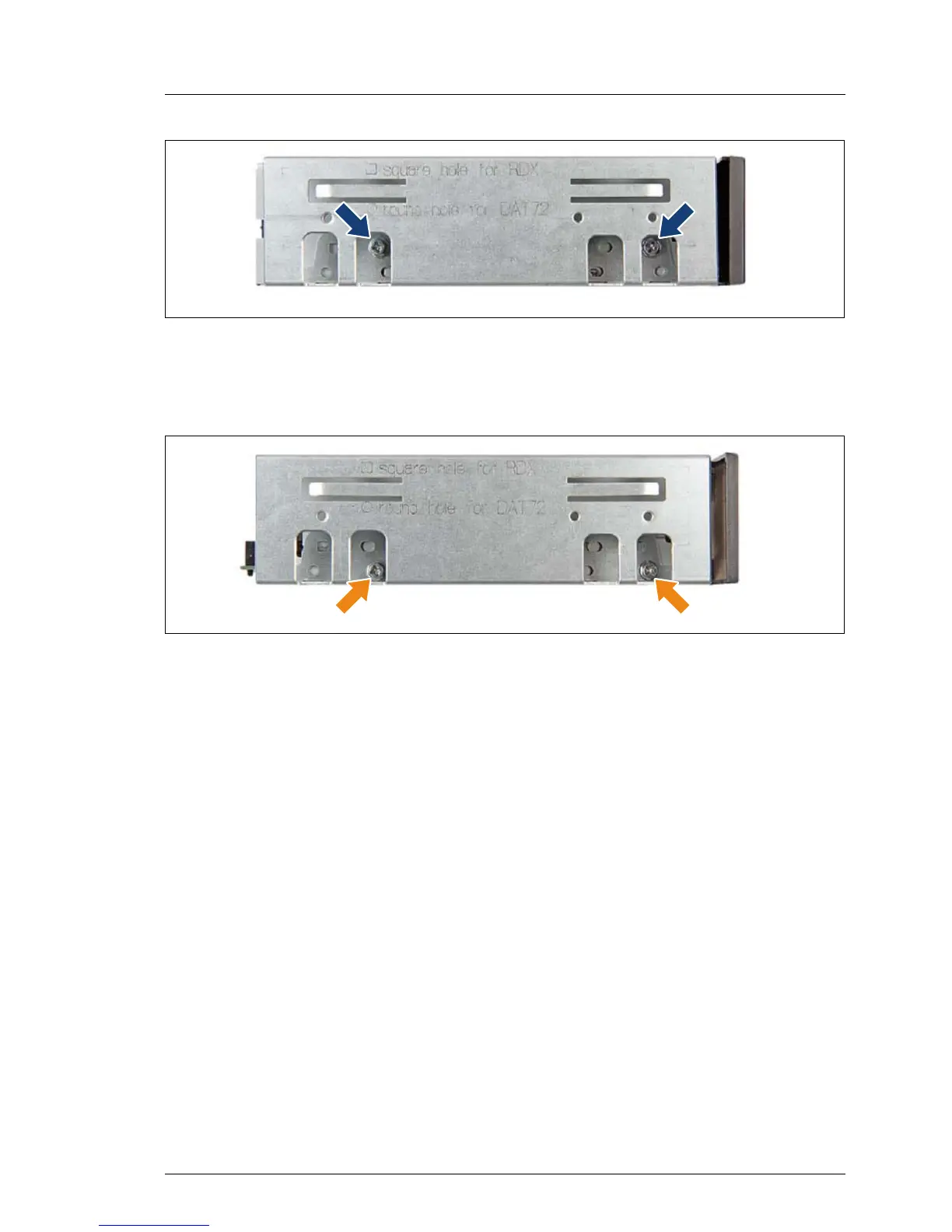

Figure 143: Securing mounting brackets to an RDX backup drive
Ê Secure the backup drive mounting brackets to the RDX backup drive with
two screws per bracket as shown.
Figure 144: Securing mounting brackets to a DAT72 backup drive
Ê Secure the backup drive mounting brackets to the DAT72 backup drive with
two screws per bracket as shown.
