248 Upgrade and Maintenance Manual
TX140 S2
Front panel module

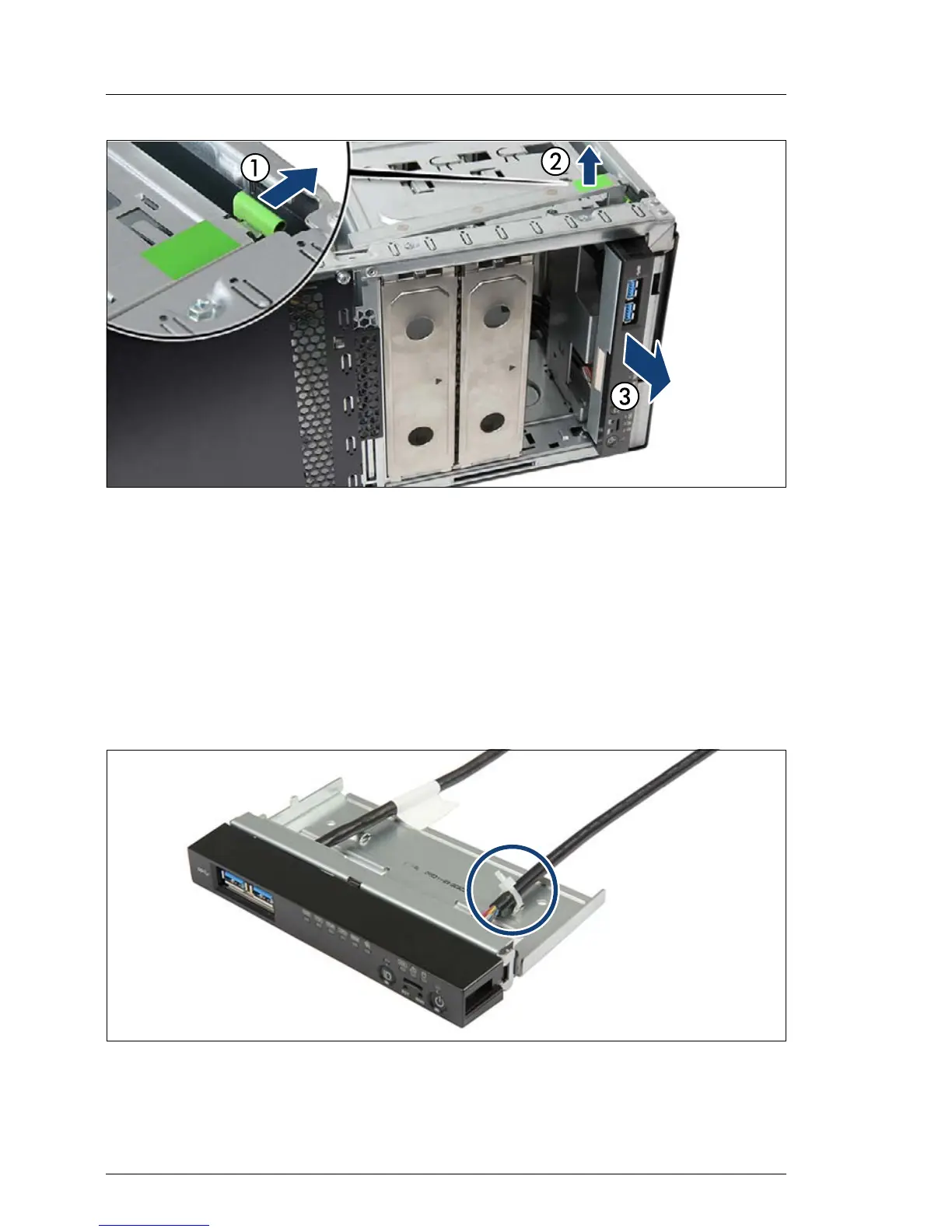

Figure 154: Removing the front panel module
Ê Press out on the locking latch to disengage the accessible drive locking bar
(1).
Ê Fold up the accessible drive locking bar (2).
Ê Carefully pull the front panel module out of its bay (3).
V CAUTION!
Ensure that none of the cables are strained or damaged!
Figure 155: Removing the cable clamp
Ê If applicable, cut open the cable clamp (see circle) and remove it.
