282 Upgrade and Maintenance Manual
TX140 S2
System board and components

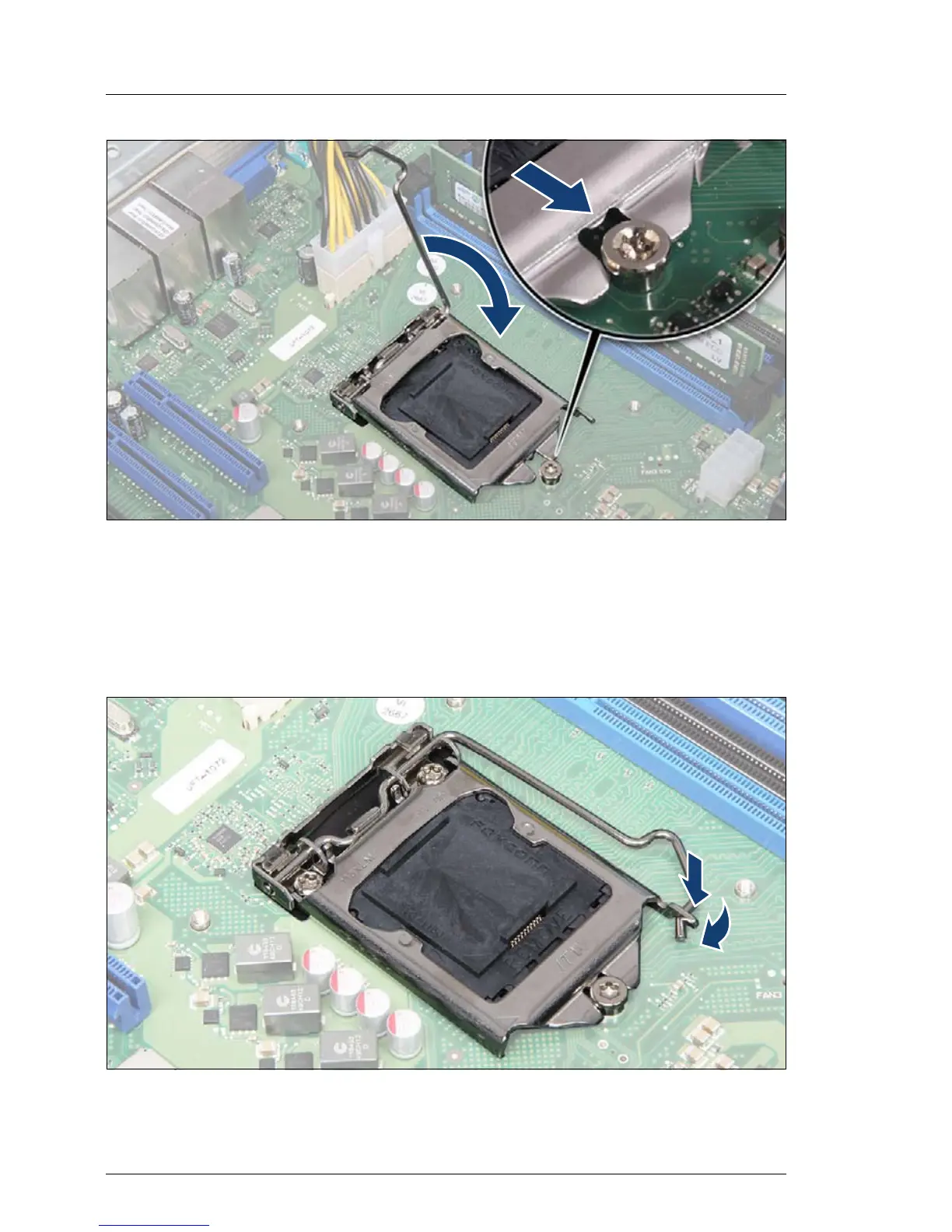

Figure 186: Installing the protective socket cover (defective system board) (B)
Ê Lower the load plate over the processor while leaving the socket lever in the
open position.
Ê Lower the socket lever while making sure that the front edge of the load plate
slides under the shoulder screw cap (see close-up) as the lever is lowered.
Figure 187: Installing the protective socket cover (defective system board) (C)
Ê Latch the socket lever under the load plate tab.
