288 Upgrade and Maintenance Manual
TX140 S2
Converting a tower model to a rack model
Removing rubber feet

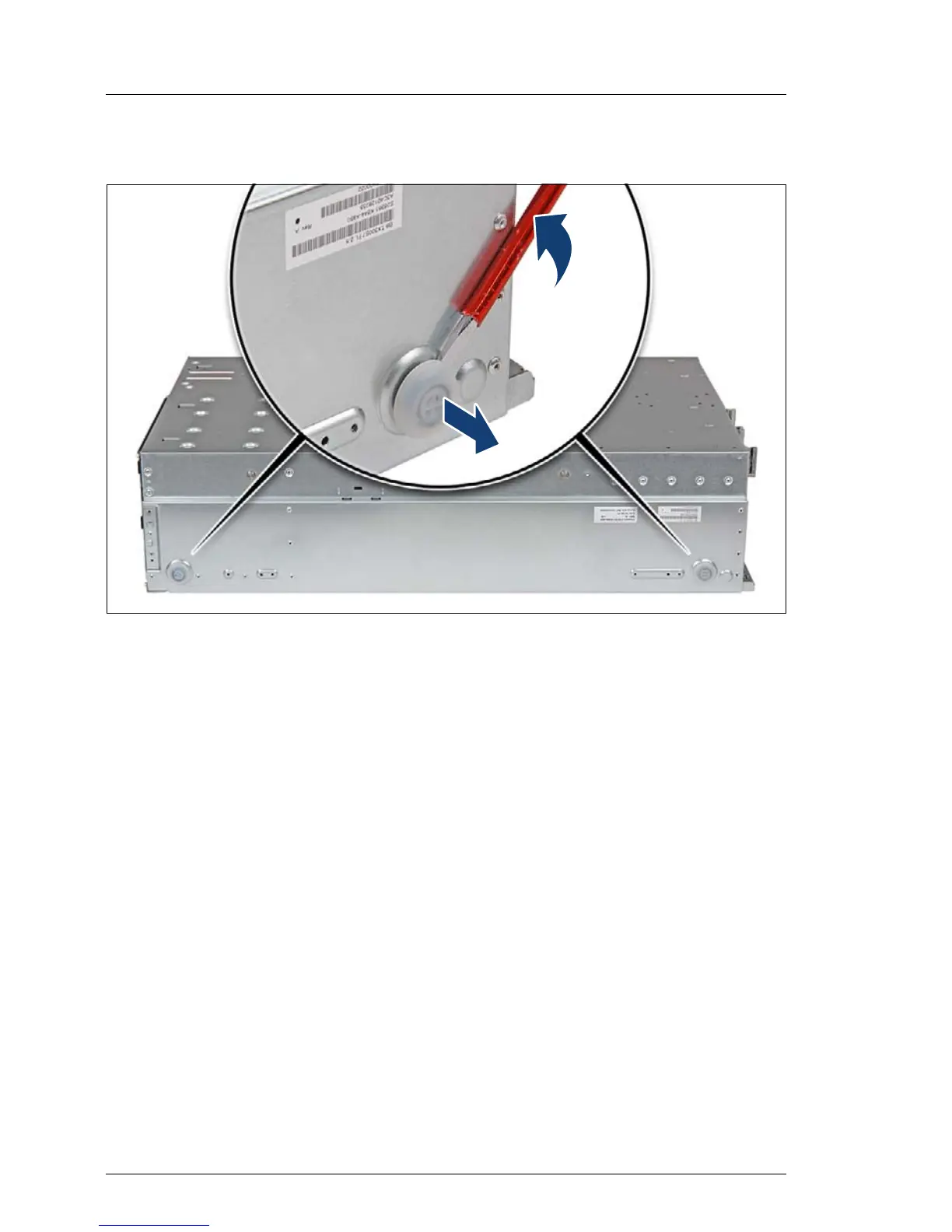

Figure 190: Removing rubber feet
Ê Using a slotted screw driver, slightly pry up on each rubber foot until it
detaches.
Ê Bring the server back to its horizontal position.
I At least two people are needed to turn over a fully equipped server.
Remove hard disk drives and power supply units in order to facilitate
the task.
