294 Upgrade and Maintenance Manual
TX140 S2
Converting a tower model to a rack model

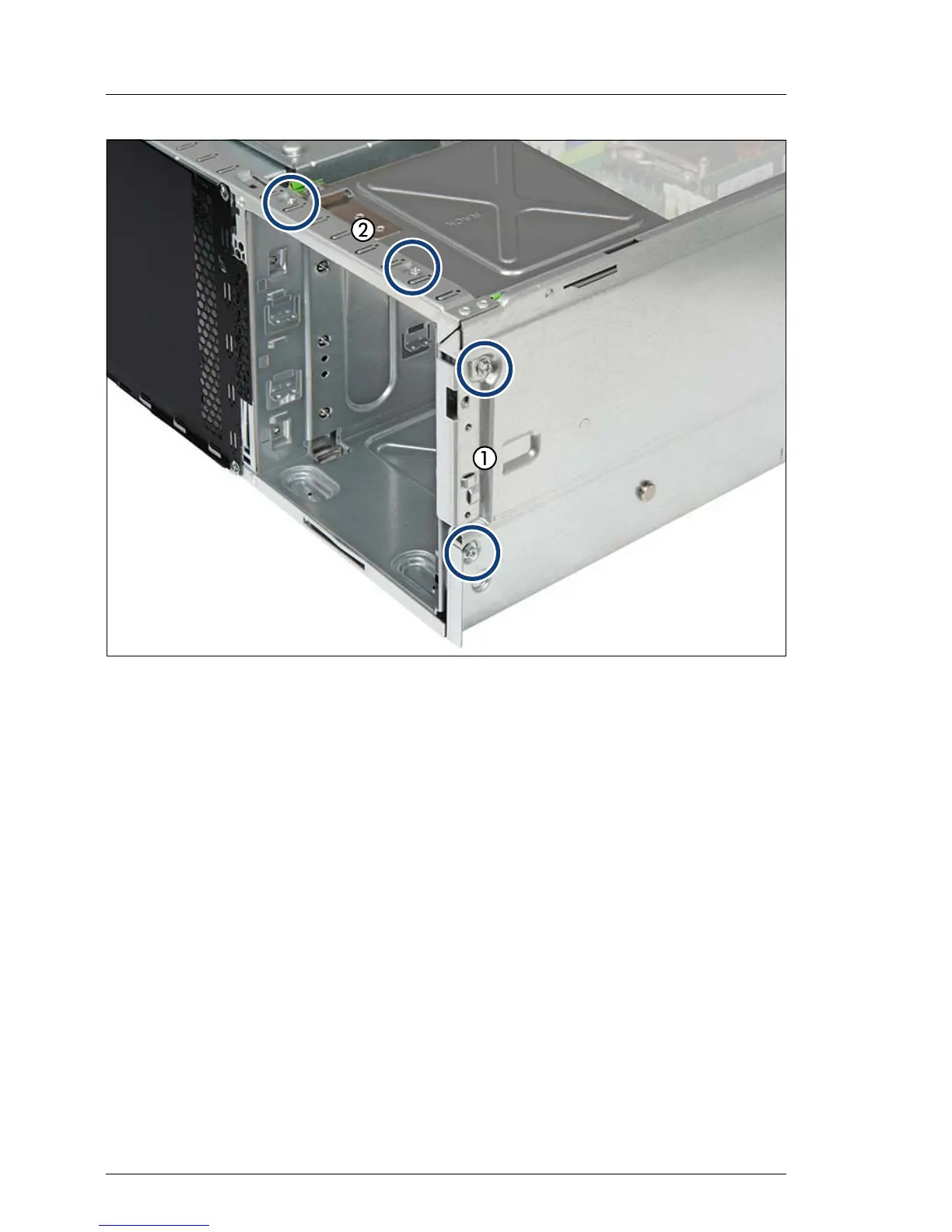

Figure 196: Securing the accessible drive cage (A)
Ê Secure the accessible drive cage with two screws (1).
Ê Secure the accessible drive cage with two screws (2).
Ê Ensure that all cables and components are properly secured inside the
server and that there are no loose pieces.
