9100c
9-12 M1207026

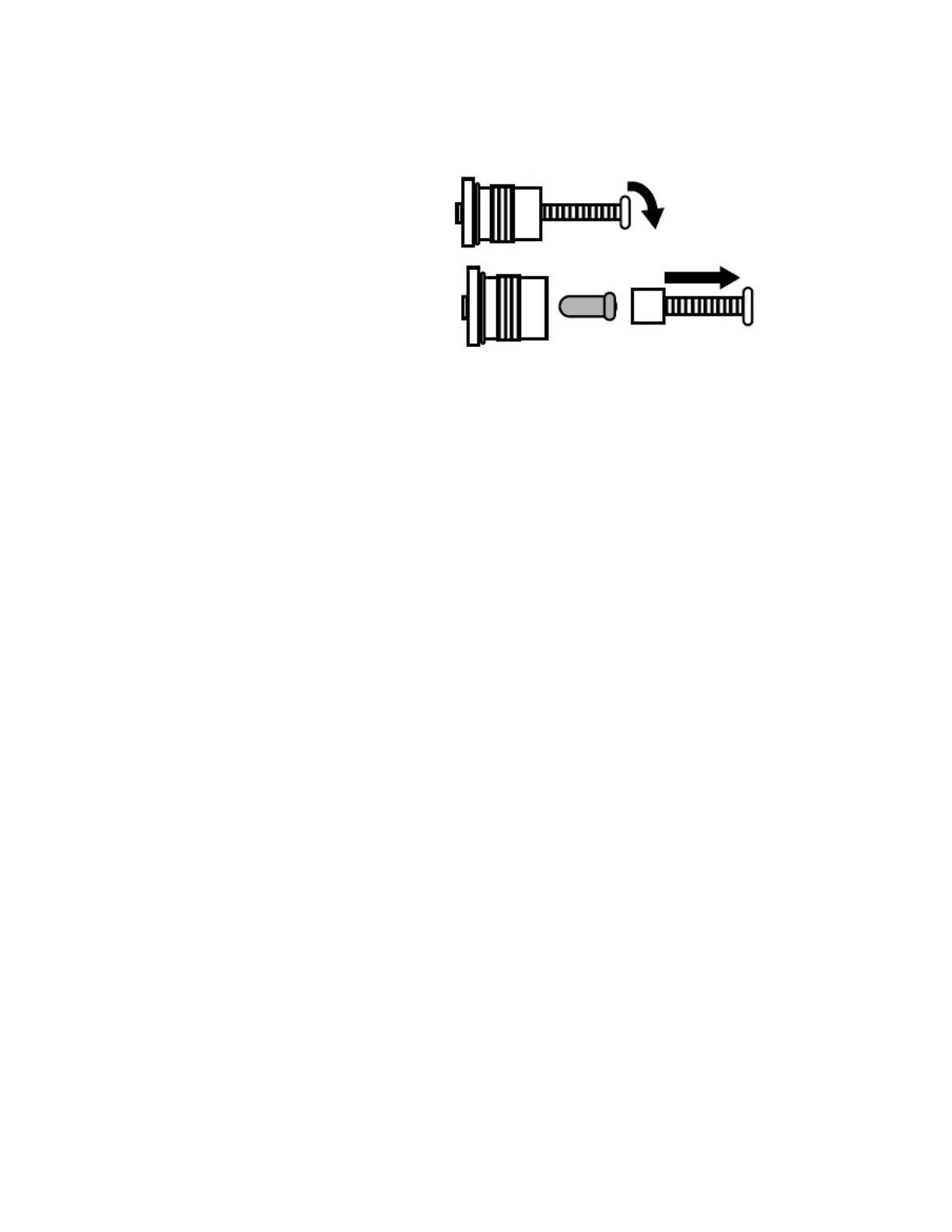

CAUTION Be careful not to crush the filter. Do not thread in the
screw more than two full turns.
4. Remove the filter.
5. Install the new filter and brass retaining ring.
6. Install the inlet adapter in the cylinder yoke.
7. Perform the checkout procedure (Section 3).
9.6.4 Replace
cylinder check valve
The cylinder check valve is not a replaceable item. If the check valve
is defective, you must replace the complete cylinder supply module.
