9.12.4 Replace the
disc seat of
inspiratory/expiratory
check valves

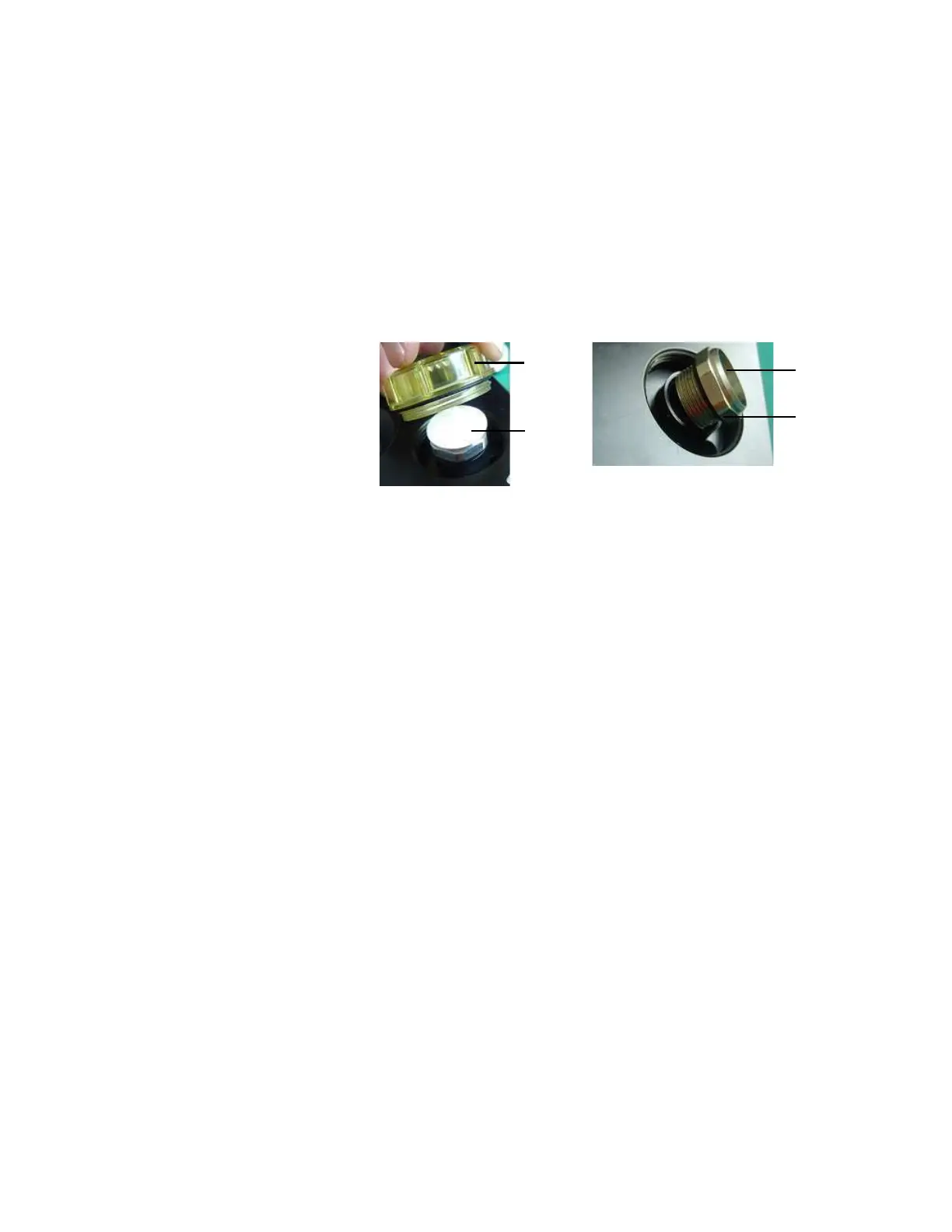

1. Remove the transparent covers (A) from the inspiratory and
expiratory check valves on the breathing system, and take off the
ceramic disc.
2. Remove the disc seat (C) by using a wrench.
3. If required, replace the disc seat and the o-ring (D).
4. Install the new disc seat into place.
5. If required, install a new ceramic disc (B).
6. Reinstall the transparent covers.
7. Perform the checkout procedure (Section 3).
Check valve test In normal operation, observe the check valve whether it can rise and
fall normally within transparent cover.
• The expiratory check valve rises during the expiration and falls at
the start of inspiration.
• The inspiratory check valve rises during inspiration and falls at
the start of expiration.
Perform the post-service checkout procedure.
